In modern network deployments, Power over Ethernet (PoE) simplifies installations by delivering data and power over a single cable. But what about devices lacking built-in PoE support? Enter the PoE Splitter – a critical tool for integrating non-PoE devices into PoE networks.
As a leader in PoE innovation, Velolan Networks offers expertly engineered splitters tailored to diverse technical requirements.
What Does a PoE Splitter Do?
A PoE splitter separates the combined power-and-data signal from a PoE source (like a switch or injector) into two outputs:
1. A standard Ethernet data output for device connectivity.
2. A DC power output (5V, 12V, or 24V) to energize equipment.
This allows non-PoE devices (wireless APs, IP phones, IoT sensors) to leverage PoE infrastructure. Velolan Networks’ splitters offer precision voltage matching and connector flexibility (DC5.5×2.1/2.5mm, Type-C, Micro USB), ensuring broad compatibility.
Can I Use a Splitter for PoE Cameras?
Absolutely! PoE splitters are ideal for non-PoE security cameras. By connecting to a PoE source, they deliver both data and the correct DC voltage to the camera. For optimal results, match your camera’s voltage (5V/12V/24V) and power connector (e.g., DC barrel or USB-C) with Velolan’s specialized splitters.
PoE Splitter vs. Injector: Key Differences
| PoE Injector | PoE Splitter |
| Adds power to Ethernet data | Removes power from PoE signal |
| Installed near the switch | Placed near the end device |
| Powers non-PoE switches | Powers non-PoE endpoints |
| Velolan provides both solutions, enabling end-to-end PoE deployment. (PoE Injector; PoE Splitter) | |
Are PoE Splitters Safe?
Yes – when compliant with IEEE 802.3af/at/bt standards and safety certifications (UL/CE/FCC). Quality splitters include:
1. Over-voltage/current protection
2. Short-circuit prevention
Voltage regulation
Velolan splitters undergo rigorous testing, featuring multi-layered safeguards and precise voltage output (5V/12V/24V) to protect connected devices.
Does a Splitter Reduce Signal Strength?
Properly engineered splitters cause negligible signal degradation. Performance depends on:
1. Splitter speed rating (100Mbps/1Gbps/2.5Gbps)
2. Ethernet cable quality/length
Velolan’s speed-specific splitters (100M, 100/1000M, 100/1000/2500M) maintain data integrity, avoiding bottlenecks.
Can I Split a PoE Cable?
Never use passive cable splitters – they risk equipment damage.
Instead:
1. Use a dedicated PoE splitter per end device.
2. Ensure your PoE source supports required power budgets.
Velolan splitters provide a safe, standards-based solution for single-device power extraction.
Choosing the Right PoE Splitter: Velolan Networks Solutions
Select based on:
1. Speed: 100Mbps, 1Gbps, or 2.5Gbps
2. Voltage: 5V, 12V, or 24V DC
3. Connector: DC barrel, Type-C, or Micro USB
4. Compliance: IEEE 802.3af/at/bt
Velolan Networks PoE Splitter Product Guide
PART1: 100Mbps PoE Splitter for Basic IoT, sensors
| Picture |  |  |  |  | |  |  |
|---|---|---|---|---|---|---|---|
| Model No. | XPS0502 | XTYPEC0503 | XFS5712 | XPS5712P | XPS5712AT-Pro | XPS5712AT | XPS5724AT |
| Transfer Rate | 100Mbps | 100Mbps | 100Mbps | 100Mbps | 100Mbps | 100Mbps | 100Mbps |
| DC Output | 5V 2.4A | 5V 3A | 12V 1A | 12V 1A | 12V 2A | 12V 2A | 24V 1A |
| PoE Protocol | IEEE802.3af | IEEE802.3af/at | IEEE802.3af | IEEE802.3af | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at |
| Power | 13W | 24W | 13W | 13W | 24W | 24W+ | 24W |
| Interface Type | DC5.5x2.1mm Type-C Micro USB | Type-C | DC5.5x2.1mm | DC5.5x2.1mm | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB |
PART2: 100/1000Mbps PoE Splitter for IP cameras, VoIP phones
| Picture |  |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|---|
| Model No. | XPS0502G | XPS0503G | XPS0504G | XPS5712G | XPS5712TG | XPS1248G | XPS1260G | |
| Transfer Rate | 100/1000Mbps | 100/1000Mbps | 100/1000Mbps | 100/1000Mbps | 100/1000Mbps | 100/1000Mbps | 100/1000Mbps | 100/1000Mbps |
| DC Output | 5V 2.4A | 5V 3A | 5V 4A | 5V 4A | 12V 1A | 12V 2A | 12V 4A | 12V 5A |
| PoE Protocol | IEEE802.3af | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3at 4Pair | IEEE802.3af | IEEE802.3af/at | IEEE802.3at 4Pair | IEEE802.3af/at/bt |
| Power | 13W | 15W | 20W | 20W | 13W | 24W | 48W | 60W |
| Interface Type | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB | DC5.5x2.1mm | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB | DC5.5x2.1mm | DC5.5x2.1mm DC5.5x2.5 |

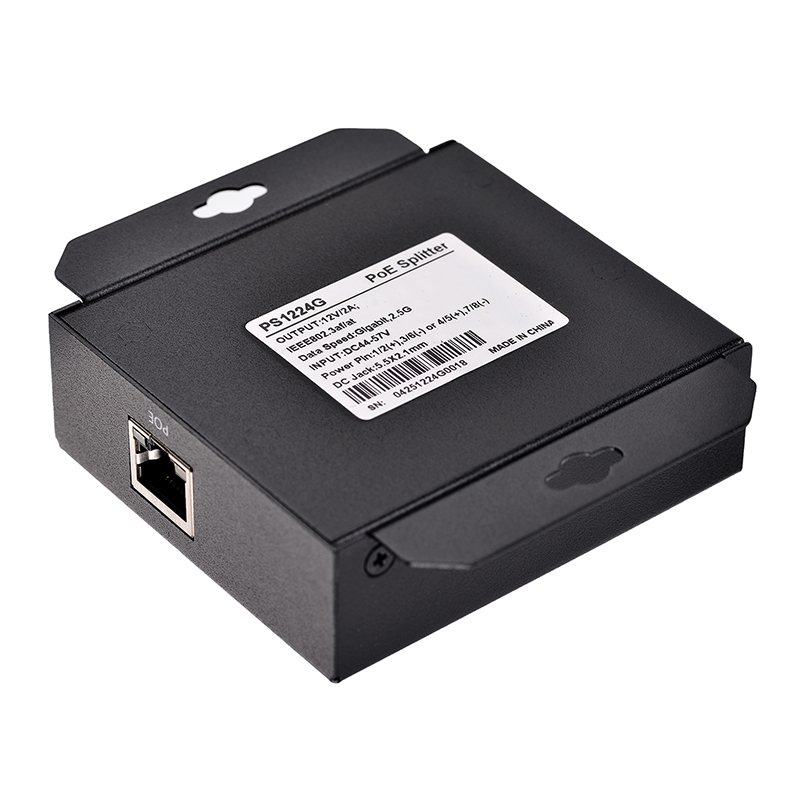

PART3: 100/1000/2500Mbps PoE Splitter for High-res cameras, APs
| Picture |  | | | |  |  |
|---|---|---|---|---|---|---|
| Model No. | XPS1224G-5V3A | XPS1224G-5V4A | XPS1224G-12V2A | XPS1224G-24V1A | XPS5724TG | XPS5712BG |
| Transfer Rate | 100/1000/2500Mbps | 100/1000/2500Mbps | 100/1000/2500Mbps | 100/1000/2500Mbps | 100/1000/2500Mbps | 100/1000/2500Mbps |
| DC Output | 5V 3A | 5V 4A | 12V 2A | 24V 1A | 24V 1A | 12V 3A |
| PoE Protocol | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at/bt |
| Power | 15W | 20W | 24W | 24W | 24W | 36W |
| Interface Type | DC5.5x2.1mm | DC5.5x2.1mm | DC5.5x2.1mm | DC5.5x2.1mm | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB | DC5.5x2.1mm DC5.5x2.5 Type-C Micro USB |
Why Choose Velolan Networks?
Full-Scale Versatility: Every speed tier (100M to 2.5G), voltage (5V/12V/24V), and connector (DC/Type-C/Micro USB).
Safety Assurance: Advanced circuit protection + global certifications.
Zero-Compromise Performance: No data loss at rated speeds.
Future-Proof: Multi-Gig support for bandwidth-intensive devices.
Conclusion
PoE splitters bridge the gap between legacy devices and modern PoE networks. Whether deploying security cameras, digital signage, or wireless systems, Velolan Networks’ precision-engineered splitters deliver safe, efficient power and data transmission. With unmatched configurability across speed, voltage, and connector options, Velolan empowers seamless integration of any non-PoE endpoint.
Send email info@poe-switch.com to explore Velolan Networks’ PoE Splitter portfolio to find your perfect power-data solution.
