Products Description
Overview

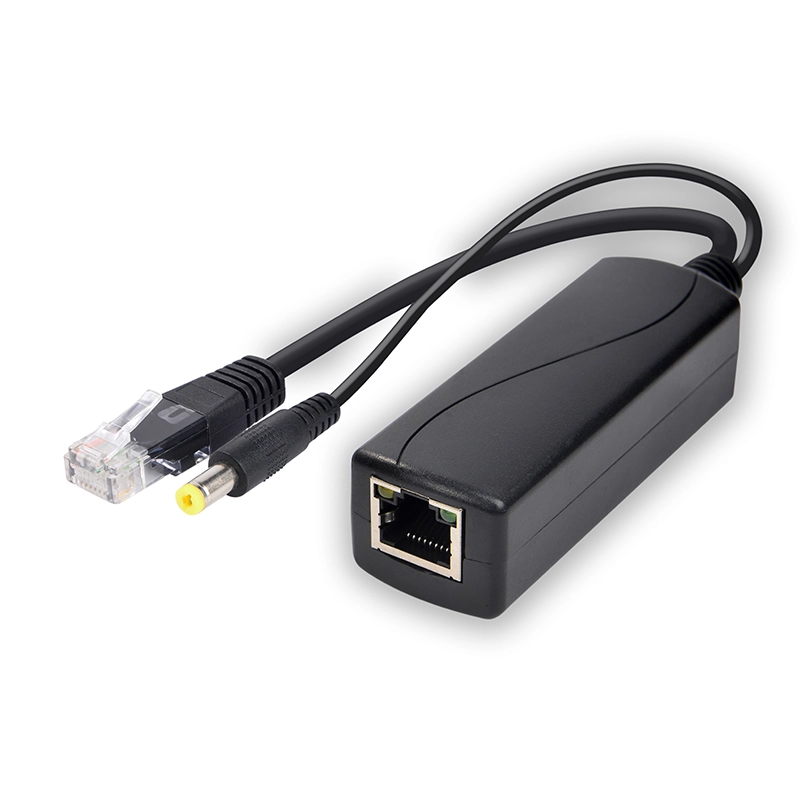

*The Main Board of this PoE Splitter is 5V 2.4A Output.
*Data Transfer Rate is 10/100Mbps.
*4 Interface Connection Methods for You to Choose :
DC Jack 5.5*2.1mm (XPS0502-DC55*21)
DC Jack 5.5*2.5mm (XPS0502-25 DC55*25)
Type-C Jack (XTYPEC0502)
Micro-USB Jack (XUSB0502)
Features
· Support international standard IEEE802.3 af(12.5W);
· POE port Support 10/100Mdata transmission
· PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
· 5V/2.4A power output using TYPEC ,the TYPEC port only for power-charging.
· Support the isolation circuit protection,can effectively protect electrical equipment.
· Support the short circuit,overvoltage protection
· 1500V high voltage isolation
Technical Parameters
Model | XPS0502 |
Transfer Rate | 10/100M |
Power | Input 48V DC /0.35A, Output 5V/2.4A |
Standard | IEEE802.3 af(12.5W) |
TRNF | 1/2(+),3/6(-);4/5(+),7/8(-) |
Interface Type | 1 Input RJ45 port, 1 output RJ45 port, 1 DC output(TYPEC) |
Standard | IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
LED | Yellow PoE lamp |
Environment | Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
Dimension | 68L * 25W *25H |
| Weight | 0.05kg |
