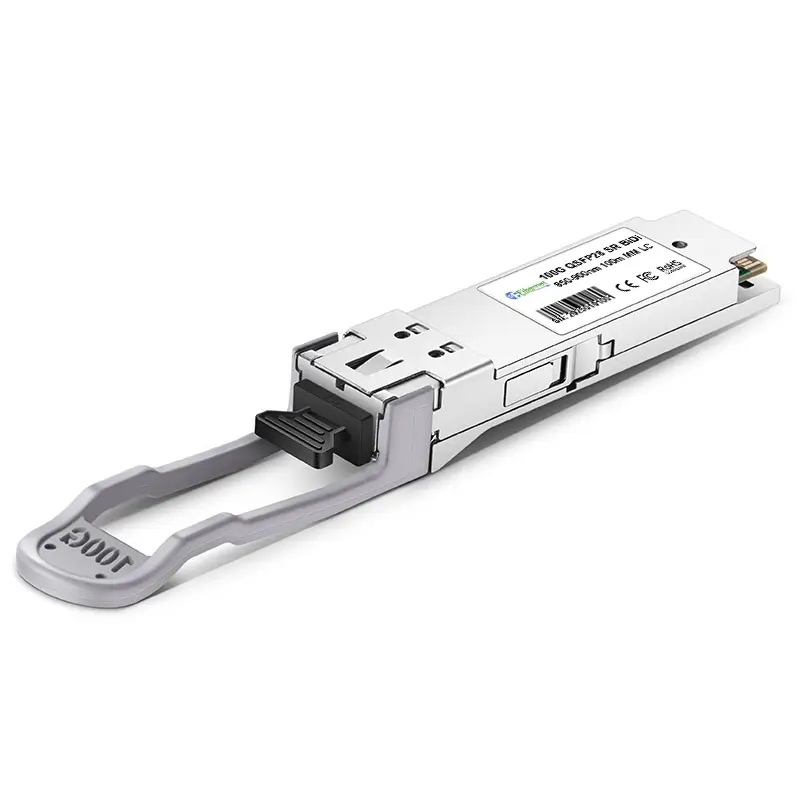

Model: X-QSFP28-BIDI-100G

Data Rate: 100Gb/S

Wavelength: 850nm-900nm

Distance: 100m

Connector: LC

Fiber Type: MM

DDM: YES

Overview

100G BIDI QSFP28 enables bidirectional data transmission through a single fiber, which means data can be sent and received on the same fiber. It is used in 100G Ethernet applications in data centers, switches, routers, transmission equipment, servers, and supercomputer interconnects. It is a solution that features high density and cost-saving.

Features

Supports 100GBASE-LR1/ER1 BIDI

Lane signaling rate 106.25Gb/s with PAM4

4x25.78Gb/s with NRZ electrical interface (CAUI-4)

Support KP4 FEC inside the module

High speed I/O electrical interface

I2C interface with integrated Digital Diagnostic monitoring

QSFP28 MSA package with simplex LC connector

Single +3.3V power supply

Operating case temperature: 0 to +70 °C

Compliant to 802.3cu, SFF-8636&SFF-8679 standard

Compliant to 100G Lambda MSA 100G-LR1/ER1 Optical Specifications

Complies with EU Directive 2015/863/E

Application

Data Center

100 Gigabit Ethernet

Switch to Switch interface

Router/Server interface
