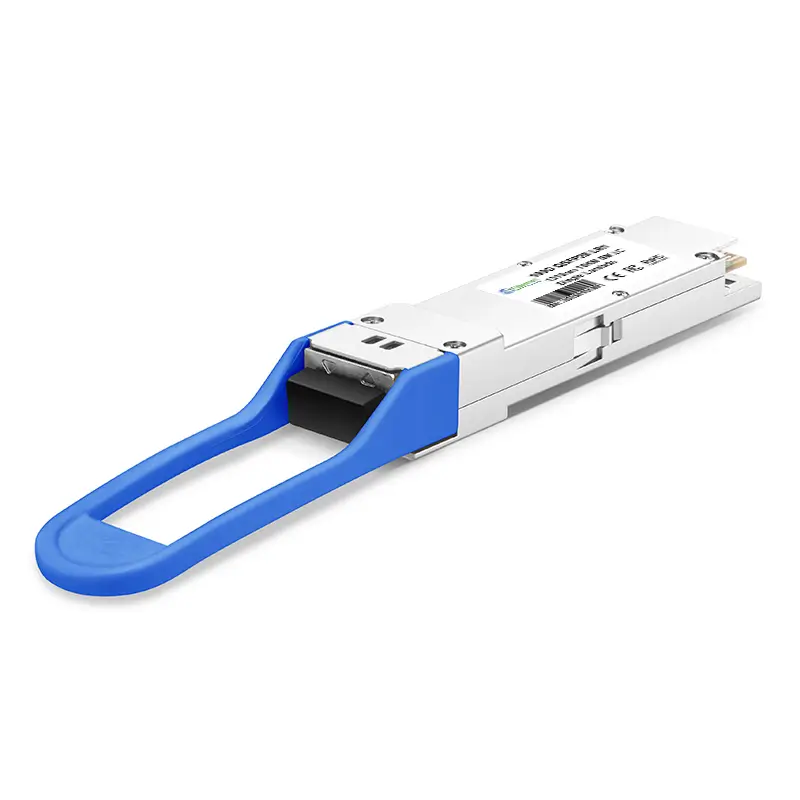

Model: X-QSFP-100G-LR1

Data Rate: 100G

Wavelength: 1310nm

Distance: 10KM

Connector: LC

Fiber Type: SM

DDM: YES

Overview

100G QSFP28 Single Lambda optical module adopts the Single Lambda technology. This technology enables the transmission of 100Gbps data over a single wavelength, eliminating the need for traditional 4-channel parallel transmission. Therefore, compared to traditional 100G QSFP28 modules, the Single Lambda technology reduces the complexity and power consumption of optical components within the optical module, making network upgrades more convenient.

Features

● Lane signaling rate 106.25Gb/s with PAM4

● 4x25.78Gb/s with NRZ electrical interface (CAUI-4)

● Support KP4 FEC inside the module

● High speed I/O electrical interface

● I2C interface with integrated Digital Diagnostic monitoring

● QSFP28 MSA package with simplex LC connector

● Single +3.3V power supply

● Operating case temperature: 0 to +70 °C

● Compliant to 802.3cu, SFF-8636&SFF-8679 standard

● Compliant to 100G Lambda MSA 100G-LR1/ER1 Optical Specifications

● Complies with EU Directive 2015/863/EU

Application

● Data Center

● 100 Gigabit Ethernet

● Switch to Switch interface

● Router/Server interface
