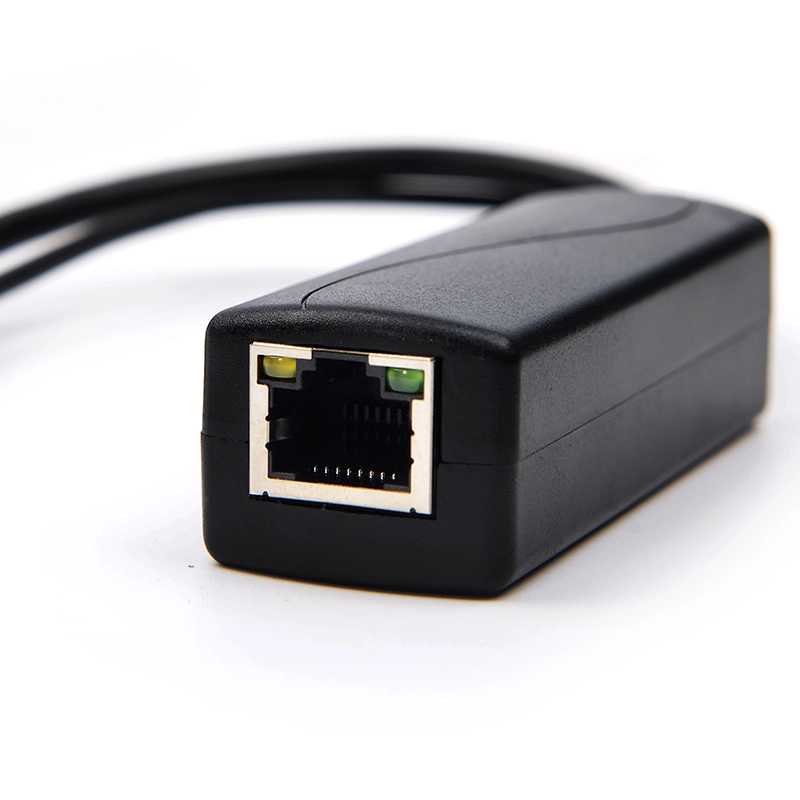

Products Description
*The Main Board of this PoE Splitter is 24V 1A Output.
*Data Transfer Rate is 10/100bps.
*4 Interface Connection Methods for You to Choose :
DC Jack 5.5*2.1mm (XPS5724AT-DC55*21)
DC Jack 5.5*2.5mm (XPS5724AT-25 DC55*25)
TYPEC (XTYPEC5724AT)
Micro USB (XUSB5724AT)
Technical Parameters
Model | XPS5724AT |
Transfer Rate | 10/100M |
Power | Input 42.5-57V/600mA , Output 24V/1A MAX |
Standard | IEEE802.3 af/at(24W) |
TRNF | 1/2(+),3/6(-);4/5(+),7/8(-) |
Interface Type | 1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
Standard | IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af ， IEEE802.3at |
LED | Yellow PoE lamp |
Environment | Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
Dimension | 93L * 34W *26H |
Weight | 0.06kg |
