*The Main Board of this PoE Splitter is 5V 2.4A Output.

*Data Transfer Rate is 1Gbps / 2.5Gbps.

*4 Interface Connection Methods for You to Choose :

DC Jack 5.5*2.1mm (XPS0502G-DC55*21)

DC Jack 5.5*2.5mm (XPS0502G-25 DC55*25)

Type-C Jack (XTYPEC0502G)

Micro-USB Jack (XUSB0502G)

Overview

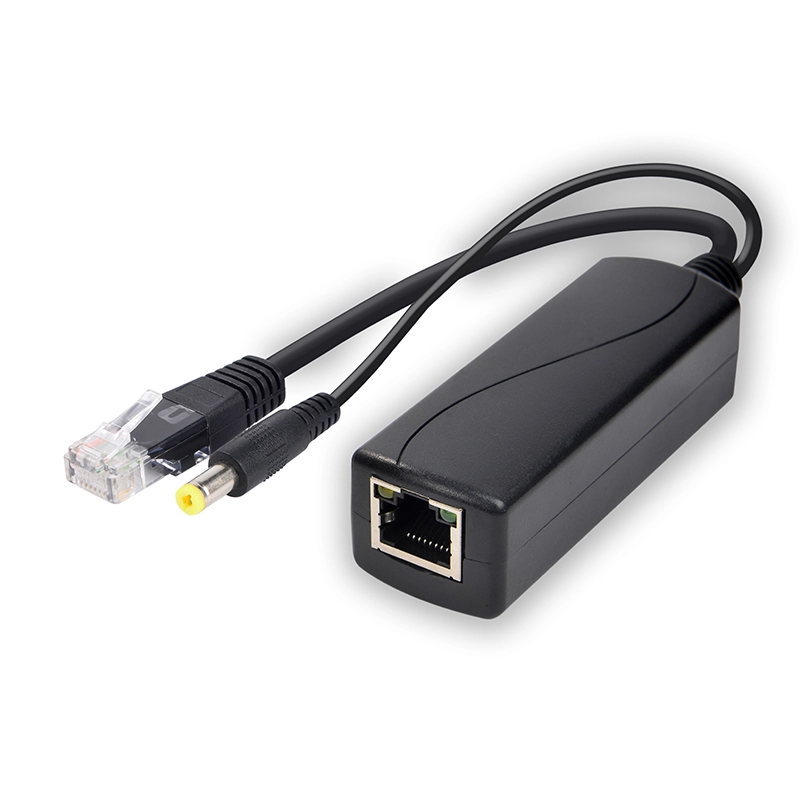

XPS0502G  5V 2.4A gigabit PoE splitter, a new model: With RJ45 port and DC Jack 5.5*2.1mm(or can choose Type-C, Micro-USB )it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Features

· Support international standard IEEE802.3 af(13W);

· POE port Support 10/100/1000Mbps data transmission

· PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module

· 5V/2.4A power output using DC Jack 5.5*2.1mm ( Type-C,Micro-USB)

· Support the isolation circuit protection,can effectively protect electrical equipment.

· Support the short circuit,overvoltage protection

· 1500V high voltage isolation

Technical Parameters
