Overview

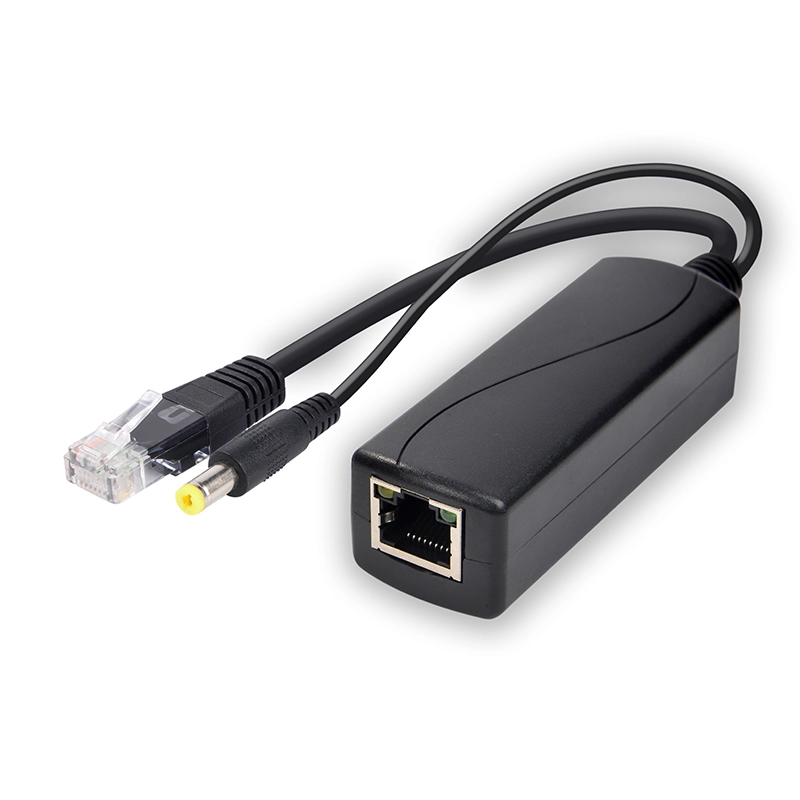

XPS5724TG gigabit poe splitter,With RJ45 port and DC Jack 5.5*2.1mm (or canchoose Type-C, Micro-USB, DC Jack 5.5*2.5mm) it is an economical and practicalPoE remote power equipment base on lEEE802.3af/at standard. It can separate thepower and data via cable transmission,Proper matching use with poe switch or PSEinjector which meet standard lEEE802.3af/at,Provides power and data at the sametime for the terminal device does not support PoE.PoE splitter, output voltage of 24V use with the power supply equipment, It helps toexpand wireless city, Security monitoring and other poe practical place, and is notrestricted by layout of power line.

Features

Support international standard EEE802.3 af/at(30W);

Support 10/100/1000Mbps data transmission

PD support 44V-57V voltage transmission,Automatically detects power supplyfrom PSE power supply module

12V power output,easy to access Poe network for non-poe terminal

Support the isolation circuit protection,can effectively protect electricalequipment.

Support the short circuit,overvoltage protection

Support overvoltage protection, short circuit protection, overcurrentprotection, overheating protection

High Performance Network Fliter For Gigabit+1500V High voltage isolationPOE transformer
