*The Main Board of this PoE Splitter is 12V 2A Output.

*Data Transfer Rate is 1Gbps / 2.5Gbps.

*2 Interface Connection Methods for You to Choose :

DC Jack 5.5*2.1mm (XPS5712TG-DC55*21)

DC Jack 5.5*2.5mm (XPS5712TG-25 DC55*25)

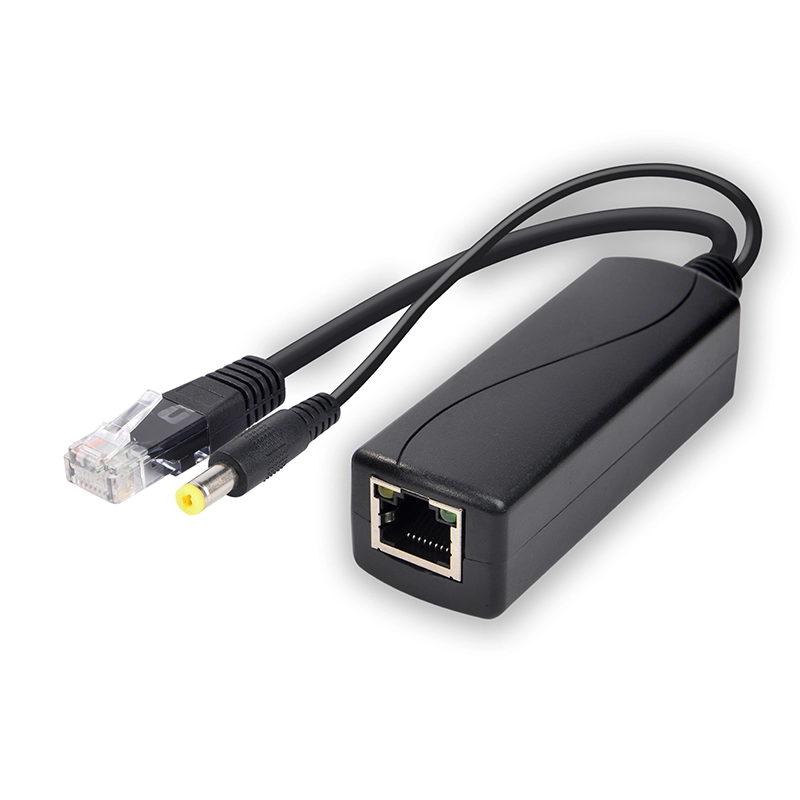

XPS5712TG 12V 2A DC Jack / Type-C / Micro-USB Connector Gigabit PoE Splitter

Three types of connectors can be selected: DC-Jack / Type-C / Micro-USB

Overview

XPS5712TG gigabit poe splitter,With RJ45 port and DC Jack 5.5*2.1mm(or can choose Type-C, Micro-USB )it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Features

· Support international standard IEEE802.3 af/at(30W);

· Support 10/100/1000Mbps data transmission

· PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module

· 12V power output,easy to access Poe network for non-poe terminal

· Support the isolation circuit protection,can effectively protect electrical equipment.

· Support the short circuit,overvoltage protection

Technical Parameters
