*The Main Board of this PoE Splitter is 12V 4A Output.

*Data Transfer Rate is 1Gbps / 2.5Gbps.

*1 Interface Connection Methods :

DC Jack 5.5*2.1mm (XPS1248G-DC55*21)

Tips :

Only the XPS1248G PoE splitter is used with PSE60G/PSE156G PoE injector, and it is capable of providing a 12V 4A power output.

Others is a 12V 2A output.

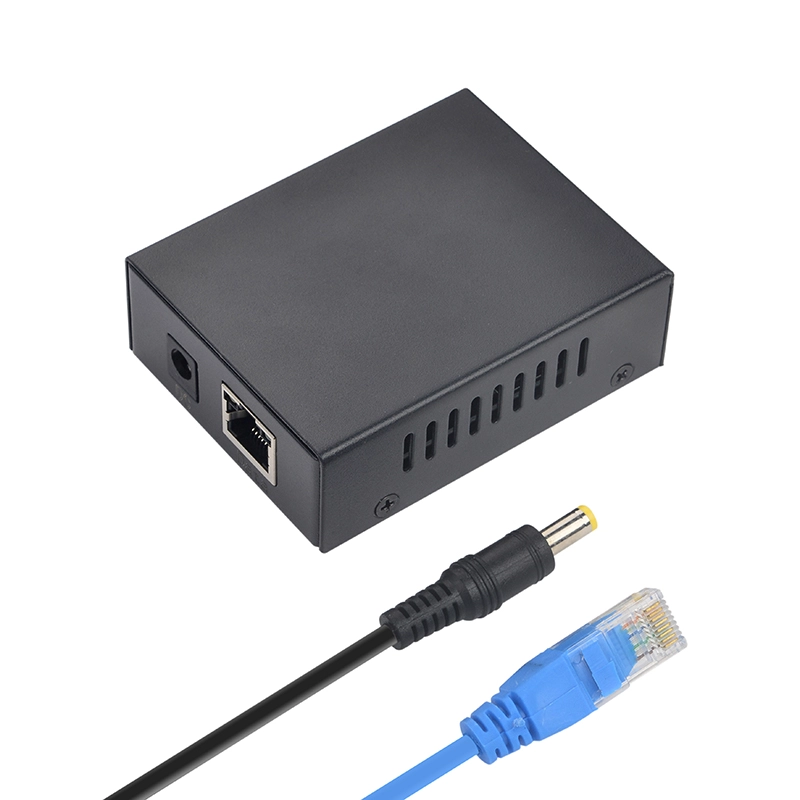

Power over Ethernet Splitter

OverView

XPS1248G 4Pairs High-Power active splitters enable data terminals that were not originally designed to accept power from the  Ethernet, to be powered by Power over Ethernet midspans. The XPS1248-4P High Power splitter can power devices such as WiMAX CPEs, small WiMAX base-stations, 802.11n Access-Points, Thin- Clients, PTZ (Pan/Tilt/Zoom) IP Cameras, Video-Phones and more.

High Power Splitter Solution

Many contemporary terminals are designed and deployed without the ability to accept power via their LAN input. Such devices can only accept power through their DC jack while their RJ45 input accepts only data. Moreover, such devices might only accept voltage levels lower than the PoE standard minimum voltage (44v in IEEE802.3af / 50v in 802.3at). Using the PS1248-4P high power splitter, these terminals immediately become PoE-ready without any modification required on their side. The splitter is identified as a powered device (PD) in front of the powering Midspan and after being detected and powered, it physically splits the data and power streams, arriving over a single cable, into wo separate cords (LAN & DC) which go directly to the data terminal. Voltage regulation is also performed to the level required by the terminal.

Technical Specifications

Connectors: 2 x RJ-45, shielded, EIA 568A and 568B DC Jacks   On unit: 5.5X2.1mm

Data Rate: 10/100/1000

Electrical Pin Assignment & Polarity: 3/6 (+),1/2 (-) and 4/5 (+),7/8 (-)

Input voltage: 44 - 57 Vdc

Input power: 60W max

Output power: 51W max

Output Current: 4.2A@12V

Dimensions & Weight:   mm (H) x  mm (W) x   mm (D)

200 gram

Indicators :Output Power Indicators: Green LED Environmental Operating Temp: -20 to 40°C

Storage Temp: -30 to 70°C

Operating Humidity: 10% to 90%, non-condensing

Storage Humidity: 5% to 95%, non-condensing

Electromagnetic Emissions FCC Part 15 Class A

& Immunity EN60950

Warranty :1-year
