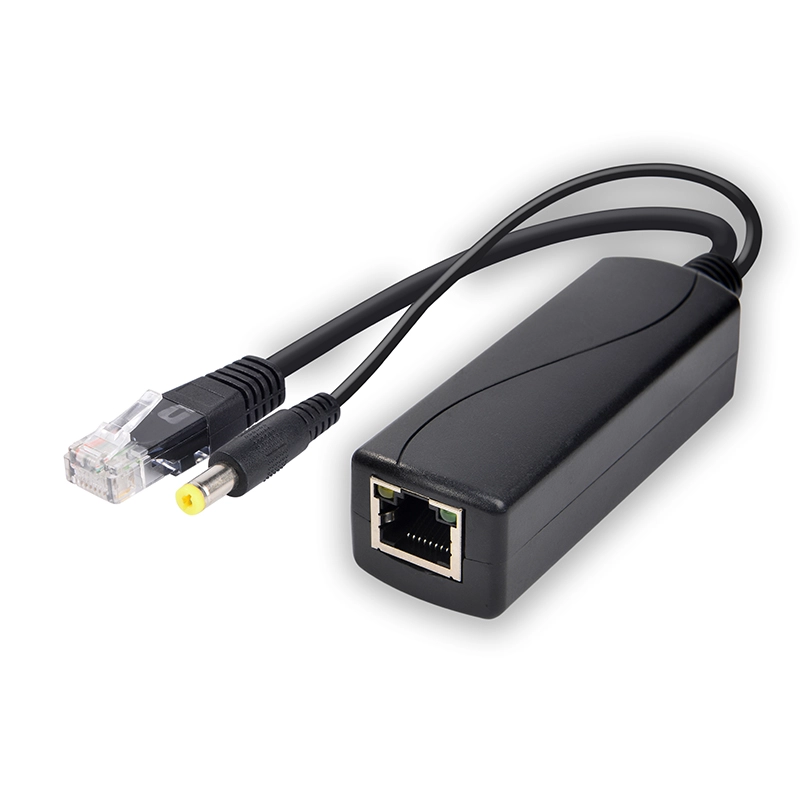

Products Description
*The Main Board of this PoE Splitter is 12V 1A Output.
*Data Transfer Rate is 10/100bps.
*2 Interface Connection Methods for You to Choose :
DC Jack 5.5*2.1mm (XPS5712P-DC55*21)
DC Jack 5.5*2.5mm (XPS5712P-25 DC55*25)
Features
· Support international standard IEEE802.3 af(15.4W);
· Support 10/100Mdata transmission
· PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
· 12V power output,easy to access Poe network for non-poe terminal
· Support the isolation circuit protection,can effectively protect electrical equipment.
· Support the short circuit,overvoltage protection
· 1500V high voltage isolation
Technical Parameters
Model | PS5712P |
Transfer Rate | 10/100M |
Power | Input 48V DC /0.35A, Output 12V/1A |
Standard | IEEE802.3 af(15.4W) |
TRNF | 1/2(+),3/6(-);4/5(+),7/8(-) |
Interface Type | 1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
Standard | IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
LED | Yellow PoE lamp |
Environment | Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
Dimension | 68L * 25W *25H |
Weight | 0.05kg |
Main parameters
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 37 | 48 | 57 | V |
2 | output voltage | +VDC | 11.8 | 12 | 12.3 | V |
3 | output Current | PWR | 1 | 1.08 | A | |
4 | Isolation Voltage | ISO | 1.48 | 1.5 | 1.52 | KV |
5 | Storage Temperature | Tj | -40 | 25 | 105 | ℃ |
6 | Operating Temperature | Tstg | -20 | 25 | 70 | ℃ |
