Overview

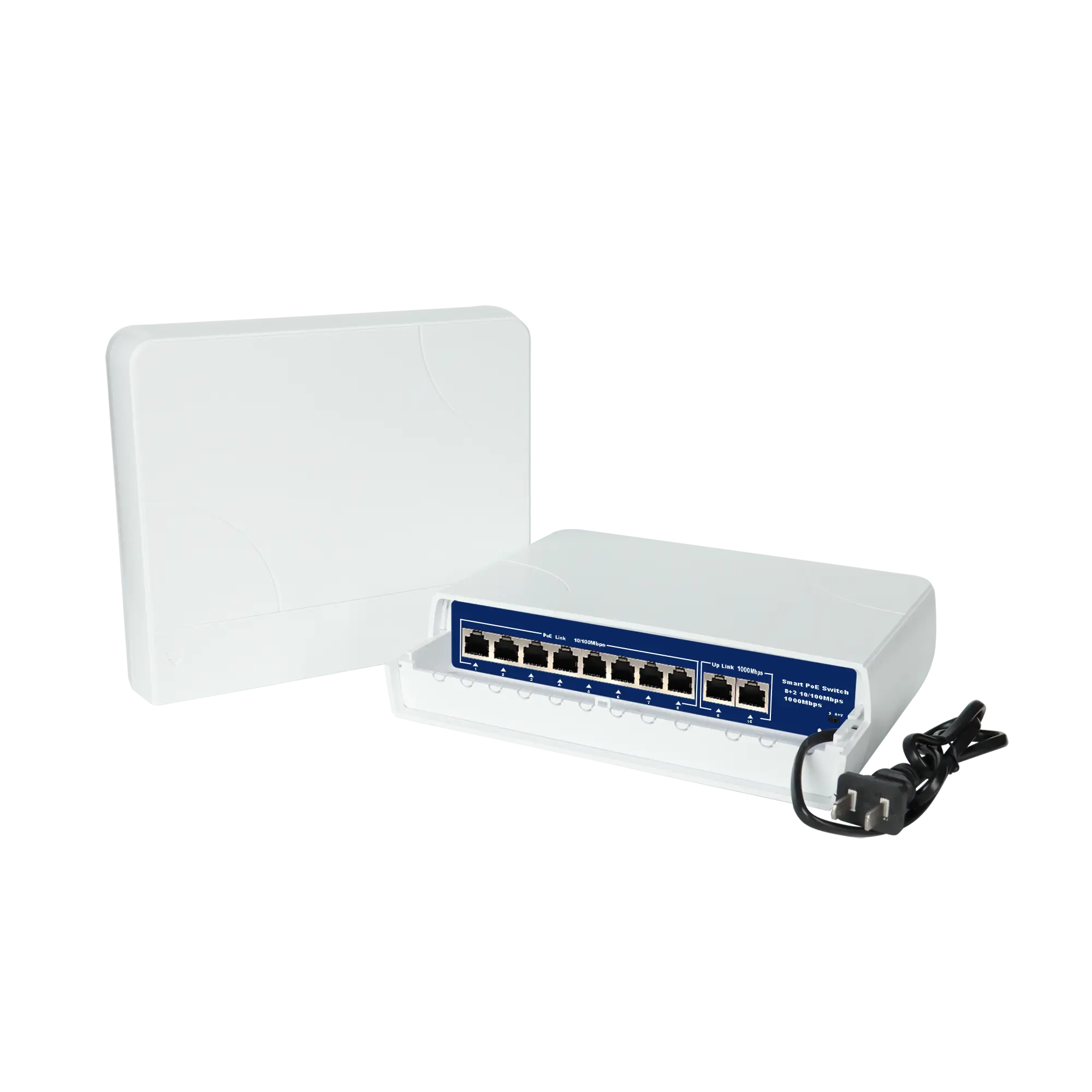

The X1501P-8T2T is a high-density hybrid outdoor PoE switch engineered to deliver scalable connectivity and power for diverse outdoor deployments. Featuring a rugged IP67-rated metal housing, it operates reliably in extreme temperatures (-40°C to 75°C), heavy rain, dust, and corrosive environments – making it ideal for industrial automation, smart city networks, and large-scale surveillance systems where device density and environmental resilience are paramount.

This robust switch combines eight 10/100Mbps Fast Ethernet PoE+ ports with two 10/100/1000Mbps Gigabit uplink ports, enabling flexible deployment scenarios. Each PoE port delivers up to 30W (IEEE 802.3af/at) to power devices like PTZ cameras, wireless APs, and sensors, while the dual Gigabit uplinks provide high-bandwidth backbone connectivity with optional link aggregation. With a 120W total PoE budget and intelligent power management, the switch dynamically allocates power across all ports to maximize efficiency.

Designed for global installations, the X1501P-8T2T supports universal AC input (110–240V) and outputs stable 52V DC power. Advanced thermal management ensures consistent operation under full load, while its plug-and-play design simplifies deployment in complex outdoor networks, reducing infrastructure costs and eliminating the need for separate power supplies at remote locations.

Key Features

1. Hybrid Port Configuration – 8× Fast Ethernet PoE+ ports (10/100Mbps, ≤30W each) + 2× Gigabit uplinks (10/100/1000Mbps) for balanced bandwidth distribution.

2. High-Capacity PoE Budget – 120W total power with IEEE 802.3af/at support, enabling simultaneous operation of multiple high-power devices.

3. Industrial-Grade Protection – IP67-rated waterproof/dustproof metal housing, surge protection (6kV), and extended temperature tolerance (-40°C~75°C).

4. Dual Gigabit Uplinks – High-speed backbone connectivity supports link aggregation (LACP) or redundancy for critical applications.

5. Universal Power & Smart Management – Wide-range AC input (110-240V), 52V DC PoE output, and auto power allocation with overload/short-circuit protection.
