Overview

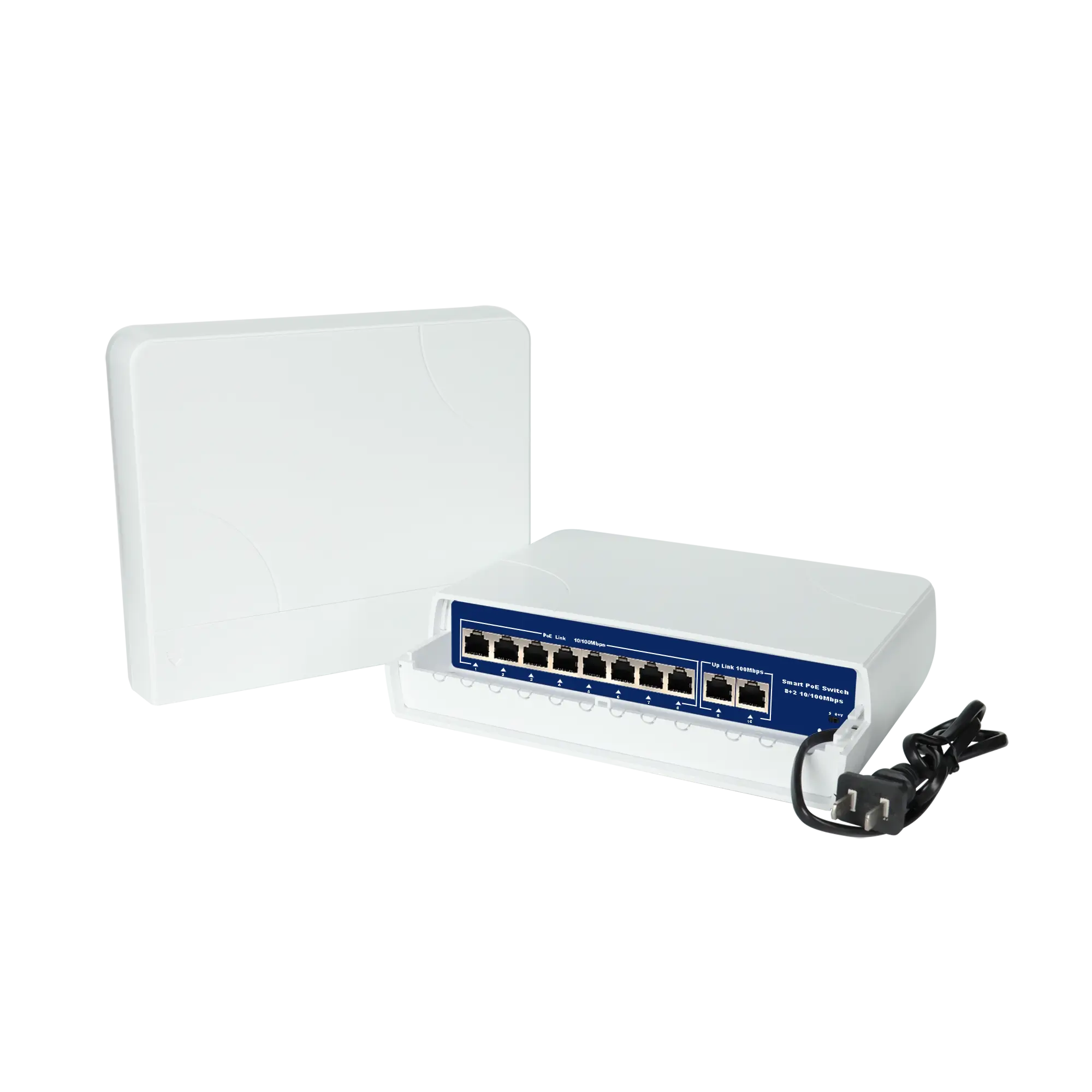

The X1501P-8F2F is a high-density outdoor Power over Ethernet (PoE) switch engineered for demanding deployments in harsh environments. Featuring a ruggedized, weatherproof housing (typically IP67-rated), it operates reliably in extreme temperatures, rain, dust, and vibrations, making it ideal for industrial sites, perimeter security, smart city infrastructure, and remote outdoor installations. Its robust design eliminates the need for separate weatherproof enclosures while delivering both data and power connectivity.

This switch offers eight 10/100Mbps Fast Ethernet PoE+ ports, each capable of delivering up to 30W of power (IEEE 802.3af/at standard) to devices such as IP cameras, wireless access points, and sensors. Two additional 10/100Mbps uplink ports provide flexible connectivity to core network equipment. With a total PoE budget of 120W, the switch intelligently allocates power across all ports, supporting high-power devices without overloading the system.

Designed for global deployment, the X1501P-8F2F accepts a wide AC input range (110–240V) and efficiently converts it to a 52V DC output for PoE devices. Its plug-and-play simplicity, combined with high power capacity and environmental resilience, streamlines the deployment of expansive outdoor networks while reducing cabling complexity and installation costs.

Key Features

1. Industrial-Grade Ruggedness – Weatherproof, IP67-rated metal housing withstands extreme temperatures, moisture, dust, and physical stress for reliable outdoor operation.

2. High-Density PoE+ Ports – Eight 10/100Mbps ports deliver up to 30W per port (IEEE 802.3af/at), powering devices like PTZ cameras and wireless APs.

3. Dedicated Uplink Flexibility – Two 10/100Mbps RJ45 ports for scalable uplink connections to routers or core switches.

4. Optimized 120W Power Budget – Supports simultaneous high-power device operation with intelligent per-port power allocation.

5. Universal Power Compatibility – Wide-range AC input (110–240V) and stable 52V DC PoE output for global deployments.

6.
