Overview

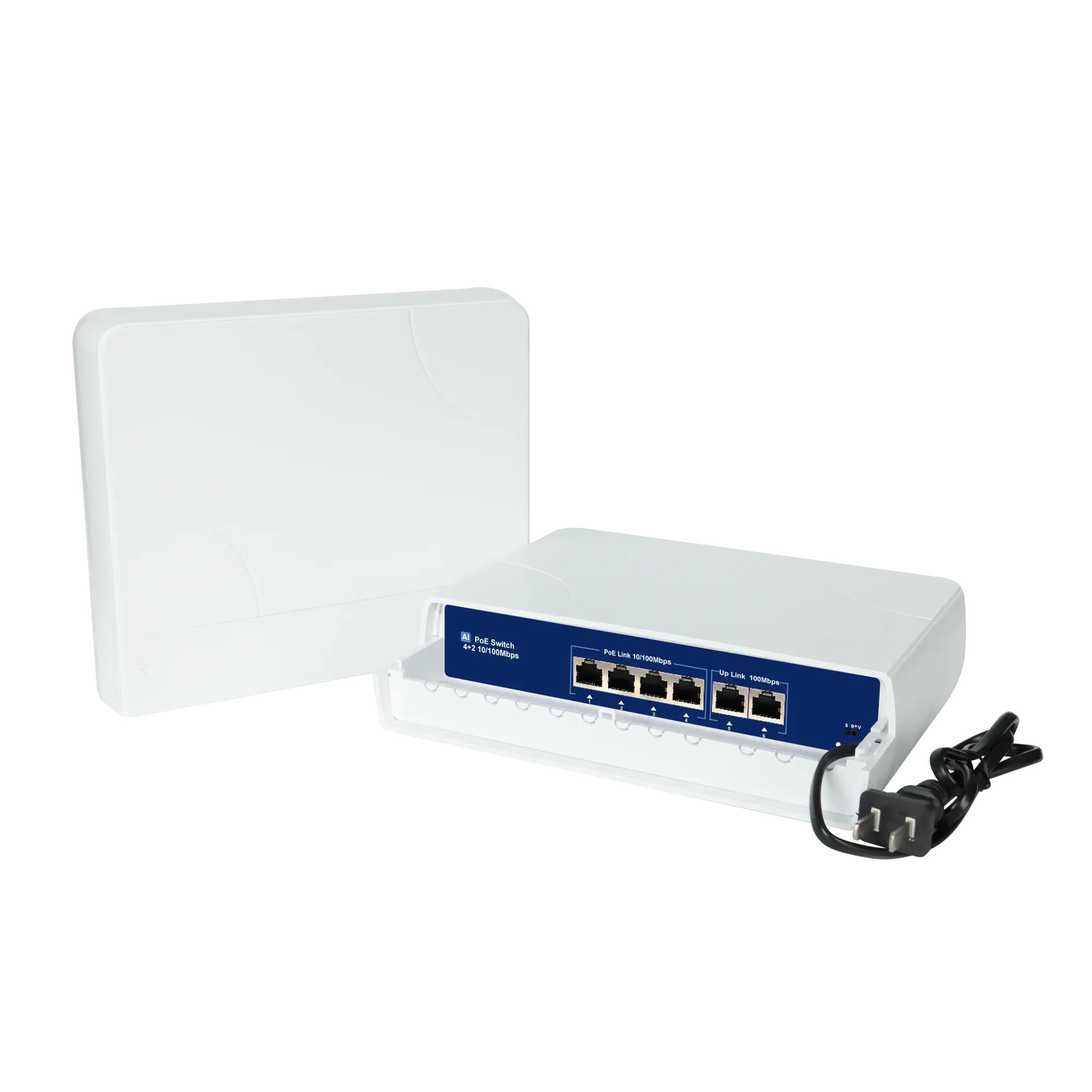

The X1501P-4F2F is a ruggedized outdoor Power over Ethernet (PoE) switch designed to deliver reliable network connectivity and power in demanding environmental conditions. Engineered for resilience, it operates effectively in wide temperature ranges and features a robust, weatherproof housing (typically IP67-rated or similar) to withstand dust, moisture, and extreme outdoor elements. This makes it ideal for deploying IP cameras, wireless access points, and other PoE devices in remote or exposed locations like perimeter security, industrial sites, or smart city infrastructure.

This compact switch provides four 10/100Mbps Fast Ethernet ports with IEEE 802.3af/at PoE+ support, capable of delivering up to 30W per port to connected devices. Additionally, it includes two dedicated 10/100Mbps Fast Ethernet uplink ports for flexible network connection back to a central switch or router. With a total power budget of 75W, the switch intelligently manages power allocation across its PoE ports to ensure stable operation for all connected devices.

Power input flexibility is ensured through a wide-ranging AC input (110-240V), simplifying deployment in various regions and electrical environments. The switch outputs power efficiently at a standard PoE DC voltage of 52V. Its focus on durability, essential PoE capabilities, and simplified outdoor installation addresses the critical need for network expansion and power delivery in challenging outdoor deployments without requiring separate power sources for each device.

Key Features

1. Rugged Outdoor Design: Built with a hardened, weatherproof enclosure (e.g., IP67-rated) to reliably operate in extreme temperatures, rain, dust, and harsh outdoor environments.

2. 4-Port PoE+ with 30W per Port: Four 10/100Mbps Fast Ethernet ports supply IEEE 802.3af/at PoE+ power, delivering up to 30W per port to connected devices like cameras and APs.

3. Dedicated Uplink Ports: Features two additional 10/100Mbps Fast Ethernet ports specifically designed for flexible network uplink connections.

4. Managed Power Budget: Provides a total PoE power budget of 75W, with intelligent allocation ensuring optimal power distribution across all connected PoE devices.

5. Wide AC Input Range & Efficient PoE Output: Supports universal AC input (110-240V) for easy global deployment and outputs power efficiently at the standard 52V DC for PoE devices.
