Overview

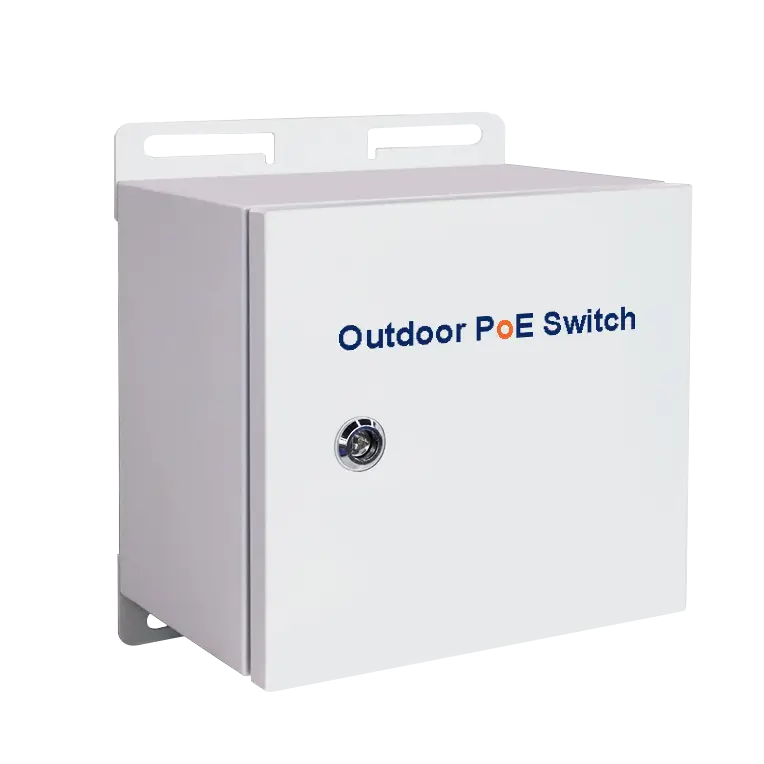

X-OPS01 is a indoor/outdoor PoE Switch Cabinet with 10-Port industrial switch, Optical Fiber Tray, power supply, Surge Protector, Air Breaker and a Smart Fan, all in a single secure cabinet enclosure. Wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety ofindustrial networks. lt can better meet the deployment requirements of rail transit. safe city,intelligent transportation, outdoor  monitoring and other harsh environments.

Main Features

8 Gigabit Ports: Includes 8 Gigabit PoE ethernet ports, support 10/100/1000Mbps; 2 Gigabit SFP Slot, Supports single-mode/multi-mode optical modules for transmission over longer distances. Switching capacity is 26Gbps, each port can reach 1G rate at the same time, with high speed transmission

300W High POE Power: 1-8 Ports support IEEE 802.3af/at power over ethernet, each port max 30W, include 300W Internal Power Supply. PoE watchdog monitors status of connected PoE devices. *Please note: it will not supply power to passive 24V PoE devices. Compatible with non-POE devices*

NEMA-rated indoor/outdoor design: for non-ventilated & harsh environments, Wide operating temperature -40 to 70°C (-40 to 158°F), built-in fan for better heat dissipation; High-quality galvanized sheet thickness 1.2mm,Triangle lock, IP55 Weather-resistant, anti-corrosion, and vandal-resistant design. Support Pole /Wall installation

Built-in power supply and surge protection; The Air breaker has short-circuit protection, overload protection and isolation functions, and has thermal-magnetic tripping characteristics C-shaped curve. The door has built-in waterproof rubber strips and built-in reinforcing ribs. The Optical fiber box has 4-port SC fiber flange, with 8-core fiber box. Cable holes on the bottom

Widely Used: provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. lt can better meet the deployment requirements of rail transit. safe city,intelligent transportation, outdoor monitoring and other harsh environments
