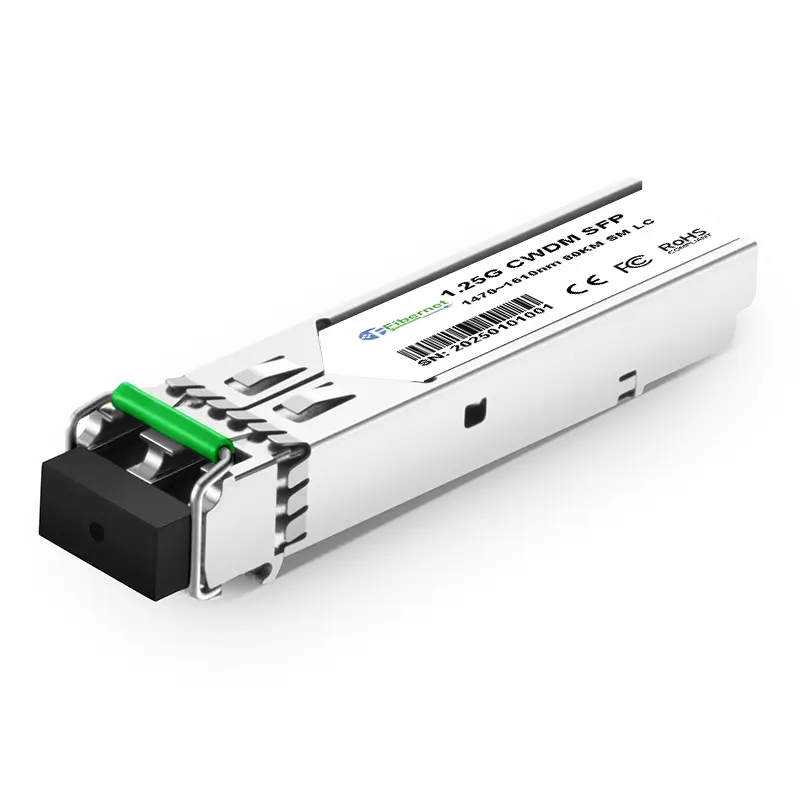

Model: X-SFP-1G-CWDM-80K

Data Rate: 1.25G

Wavelength: 1470~1610nm

Distance: 80KM

Connector: LC

Fiber Type: SM

DDM: YES

Overview

1.25G CWDM SFP optical transceiver is a high-power, long-reach solution designed for ultra-long-distance data transmission in Gigabit Ethernet and Fiber Channel networks. Utilizing Coarse Wavelength Division Multiplexing (CWDM) technology, it supports wavelengths from 1470nm to 1610nm over single-mode fiber (SMF), achieving an extended transmission range of up to 80 kilometers. This capability makes it ideal for cross-city metro networks, backbone links, and large-scale enterprise infrastructures requiring connectivity between distant locations.

Compliant with SFP MSA and IEEE 802.3 standards, the module ensures seamless compatibility with existing network equipment. It features advanced laser technology for enhanced signal integrity, low power consumption, and an industrial temperature range (-40°C to 85°C) for reliable operation in harsh environments. Integrated digital diagnostics monitoring (DDM/DOM) enables real-time performance tracking and proactive maintenance.

With a hot-swappable LC interface, the transceiver simplifies deployment and upgrades while maximizing fiber utilization through CWDM’s multi-channel efficiency. Its robust design and extended reach reduce the need for signal repeaters, lowering infrastructure costs and complexity. Combining high performance with scalability, this transceiver is a cost-effective, future-proof solution for expanding high-capacity optical networks over ultra-long distances.

Features

Data-rate of 1.25Gbps operation

18 CWDM DFB wavelengths laser and PIN photodetector for 80km transmission

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Digital Diagnostic Monitoring: Internal Calibration or External Calibration

Compatible with SONET OC-24-LR-1

Compatible with RoHS

+3.3V single power supply

Operating case temperature: Commercial Temperature: 0 to +70°C  Industrial Temperature: -40 to +85°C
