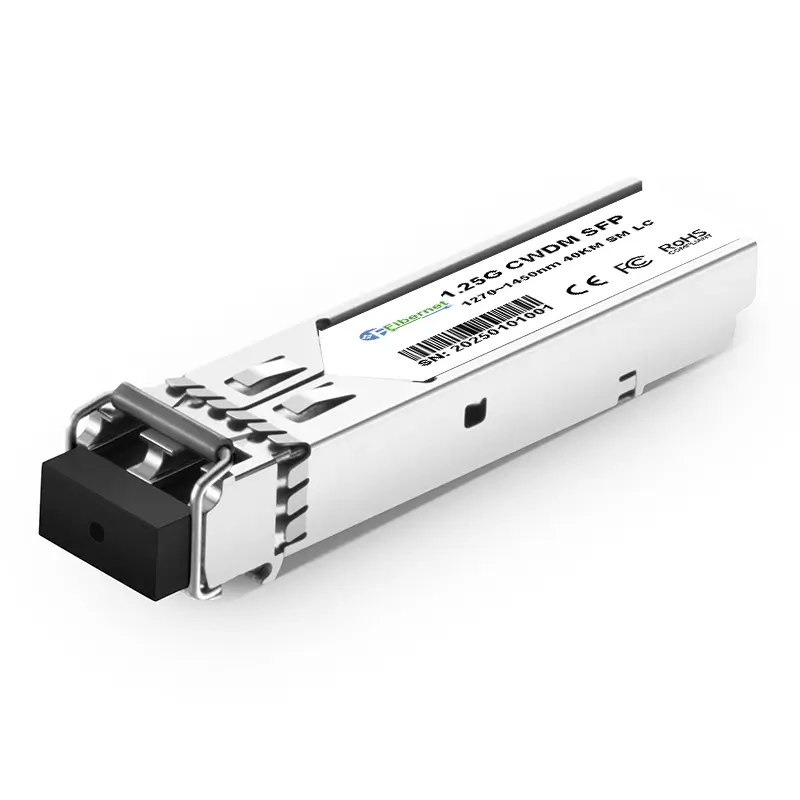

Model: X-CWDM-SFP-40K

Data Rate: 1.25G

Wavelength: 1270~1450nm

Distance: 40KM

Connector: LC

Fiber Type: SM

DDM: YES

Overview

1.25G CWDM SFP optical transceiver is a high-performance, cost-efficient solution designed for long-haul data transmission in Gigabit Ethernet and Fiber Channel networks. Leveraging Coarse Wavelength Division Multiplexing (CWDM) technology, it supports multiple wavelengths (e.g., 1470–1610nm) over a single-mode fiber (SMF), enabling up to 40KM transmission distance. This extended reach makes it ideal for metro networks, telecom backbones, and enterprise applications requiring connectivity between geographically dispersed nodes.

Compliant with SFP MSA and IEEE 802.3 standards, the module ensures seamless integration with industry-standard networking equipment. It features low power consumption, an industrial temperature range (-40°C to 85°C), and digital diagnostics monitoring (DDM/DOM) for real-time performance tracking and fault detection. The hot-swappable LC-interface design simplifies installation and maintenance, while its rugged construction guarantees reliability in harsh environments.

By maximizing fiber capacity through CWDM’s multi-channel capabilities, this transceiver reduces infrastructure costs and supports scalable network expansion. Combining long-distance performance with energy efficiency, it is a future-proof choice for high-density, high-capacity optical communication systems.

Features

Data-rate of 1.25Gbps operation

18 CWDM DFB wavelengths laser and PIN photodetector for 40km transmission

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Digital Diagnostic Monitoring: Internal Calibration or External Calibration

Compatible with SONET OC-24-LR-1

Compatible with RoHS

+3.3V single power supply

Operating case temperature: Commercial Temperature: 0 to +70°C  Industrial Temperature: -40 to +85°C
