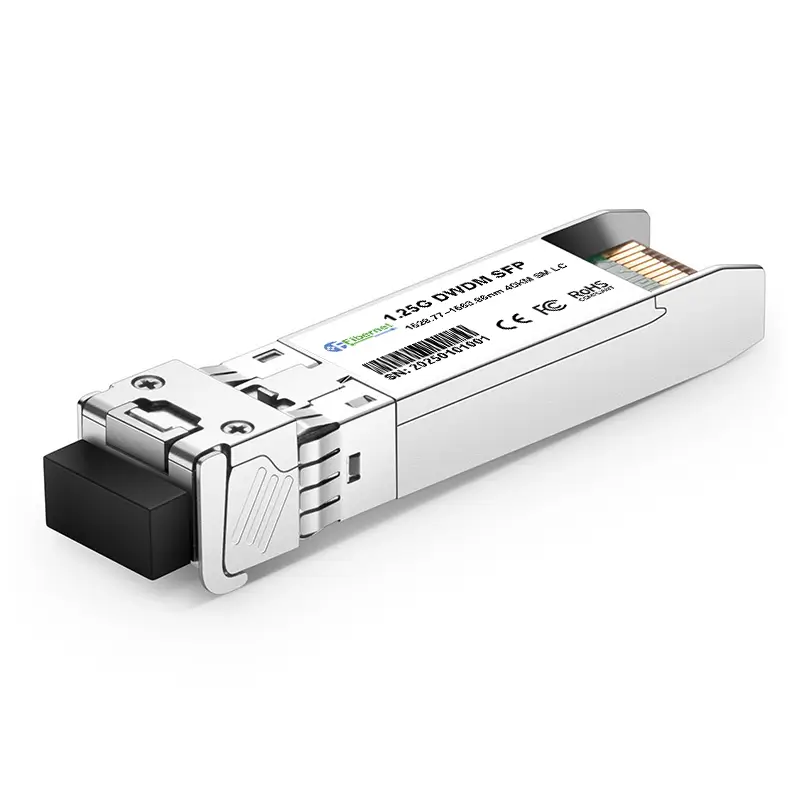

Model: X-SFP-1.25G-DW-40K

Data Rate: 1.25G

Wavelength: 1528.77~1563.86nm

Distance: 40KM

Connector: LC

Fiber Type: SM

DDM: YES

Overview

1.25G DWDM SFP optical transceiver is a high-density, precision-engineered solution designed for long-distance, high-capacity data transmission in Gigabit Ethernet and Fiber Channel networks. Leveraging Dense Wavelength Division Multiplexing (DWDM) technology, it supports ultra-narrow wavelength spacing (ITU-T grid compliant) over single-mode fiber (SMF), enabling up to 40KM transmission with exceptional signal integrity. Ideal for metro core networks, data center interconnects, and telecom backbone systems, this module maximizes fiber capacity by multiplexing multiple channels onto a single fiber, reducing infrastructure costs and complexity.

Compliant with SFP MSA, IEEE 802.3, and DWDM standards, it ensures seamless integration with industry equipment. The transceiver features low power consumption, industrial temperature range support (-40°C to 85°C), and digital diagnostics monitoring (DDM/DOM) for real-time performance management and fault detection. Its hot-swappable LC interface simplifies deployment and maintenance, while advanced thermal design ensures stability in demanding environments.

Combining DWDM’s spectral efficiency with SFP flexibility, this transceiver delivers a scalable, future-proof solution for expanding network bandwidth and supporting high-speed, long-haul optical communication requirements.

Features

Wavelength selectable to C-band ITU-T grid wavelengths

Suitable for use in 100GHz channel spacing DWDM systems

DWDM SFP MSA Compliant

Dual data-rate of 1.25Gbps/1.063Gbps operation

Up to 2.67Gb/s data rate  OC-24 Long Reach 40KM

Cold Start up Wavelength Compliance

Low Power Dissipation <1.3W Maximum

-5ºC to 70ºC Operating Case Temperature

Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, Laser temperature and TEC current

Extended link budget with APD receiver technology RoHS compliant and lead free

Interface: LC connector
