Model: X1580-24T24S6X

Type: L3 Managed PoE Ethernet Switch

RJ45 Port: 24*10/100/1000M RJ45 port

PoE Standard: IEEE802.3af/at/bt

PoE Port: 1-2 port Max 90W; 3-24 ports Max 30W/port

Fiber Port: 24*10/100/1000M SFP, 6*10G SFP+

Installation: Rack-mount(optional machine hanger spare parts)

Support: OEM&ODM, Small MOQ

Overview

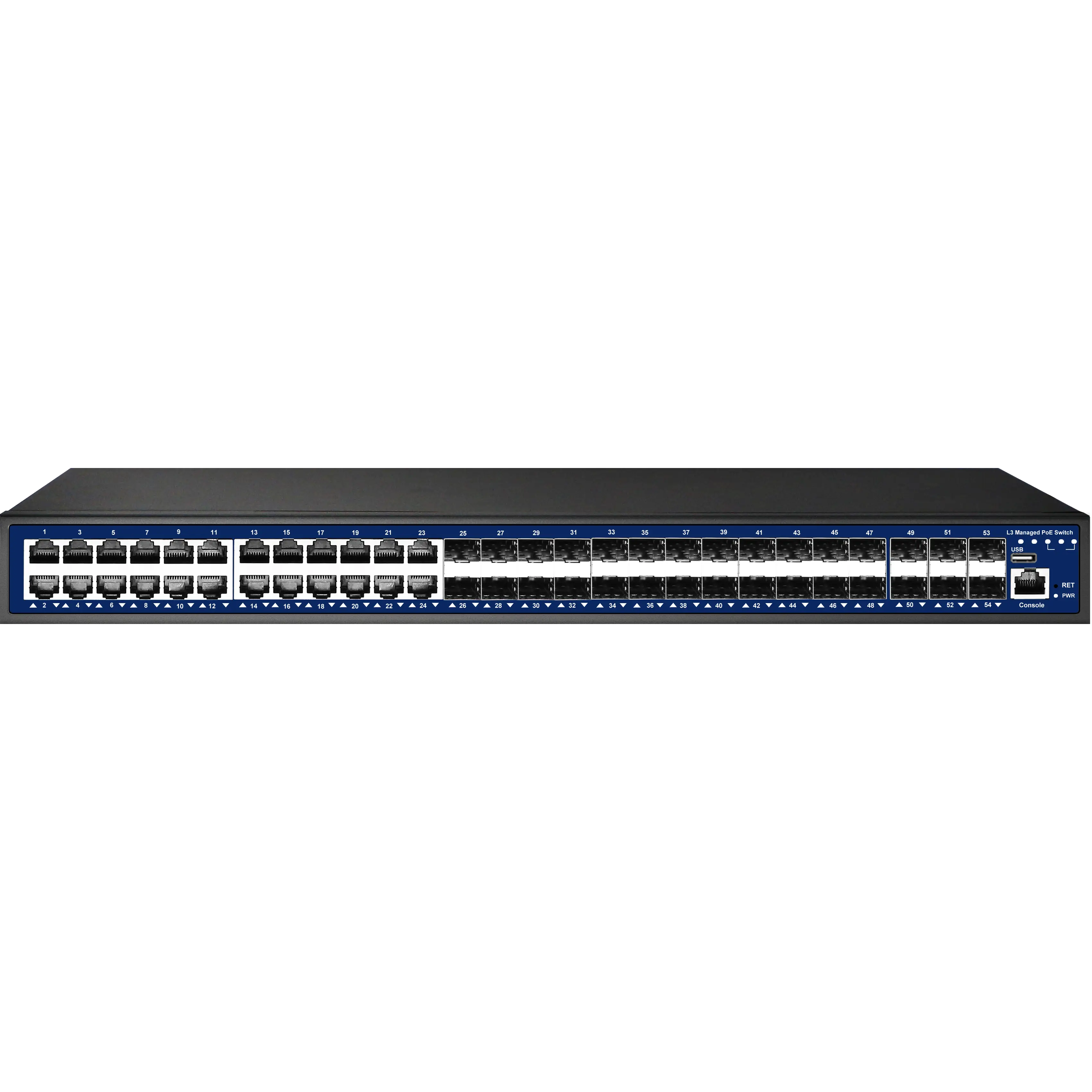

X1580-24T24S6X is an enterprise-class Layer 3 managed PoE+ switch designed for ultra-high-density networking environments. It features 24 Gigabit PoE+ ports (IEEE 802.3af/at) and 24 Gigabit SFP fiber ports, plus 6 10G SFP+ uplinks, offering unmatched flexibility for large-scale wireless deployments, high-resolution surveillance systems, and data center interconnects.

With advanced L3 routing protocols, comprehensive QoS policies, and enterprise security features, this switch enables precise traffic optimization. The modular power design supports high-efficiency PoE++ (up to 90W per port), while its redundant power supply and robust chassis ensure maximum reliability. Ideal for campuses, smart cities, and hyperscale networks requiring high-bandwidth, high-power PoE, and hybrid fiber-copper connectivity with carrier-grade management.
