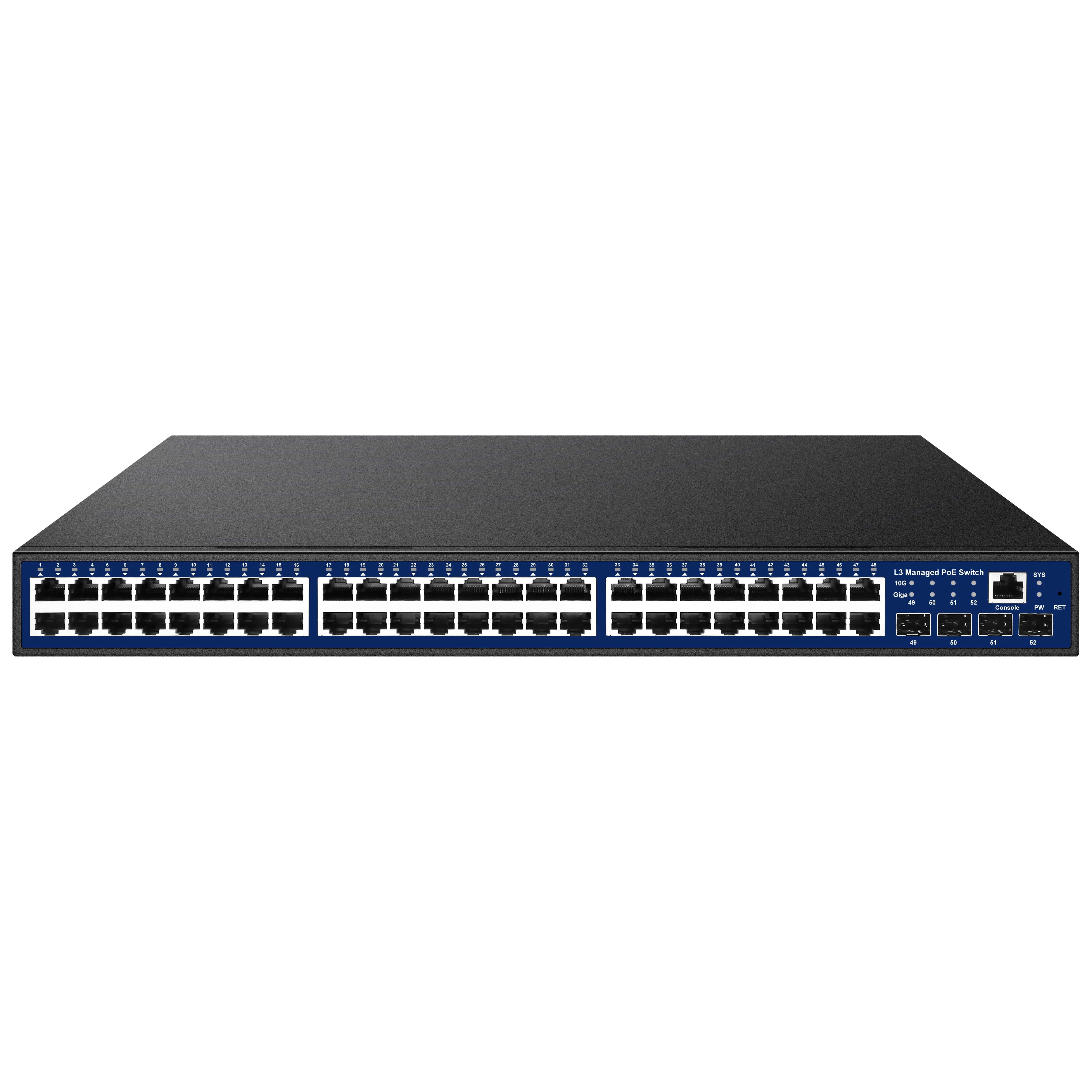

Model: X1580-48T4X

Type: L3 Managed PoE Ethernet Switch

RJ45 Port: 48*10/100/1000M RJ45 port

PoE Standard: IEEE802.3af/at/bt

PoE Port: 1-4 port Max 90W; 5-48 ports Max 30W/port

Fiber Port: 4*10G SFP+

Installation: Rack-mount(optional machine hanger spare parts)

Support: OEM&ODM, Small MOQ

Overview

X1580-48T4X is a high-density enterprise-grade Layer 3 managed PoE+ switch designed for demanding network environments. Featuring 48 Gigabit PoE+ ports (IEEE 802.3af/at) and 4 10G SFP+ uplinks, it delivers exceptional connectivity for large-scale wireless deployments, high-definition surveillance systems, and converged network applications.

With advanced L3 routing capabilities, including OSPF and VRRP, combined with granular QoS and ACL security policies, this switch enables optimal traffic management. The high-efficiency power design supports 30W PoE+ per port with intelligent power budgeting, while its redundant power supply option and robust metal chassis ensure continuous operation. Ideal for enterprise campuses, smart buildings, and service providers requiring high-port-density PoE switching with 10G uplinks and carrier-class reliability.
