Overview:

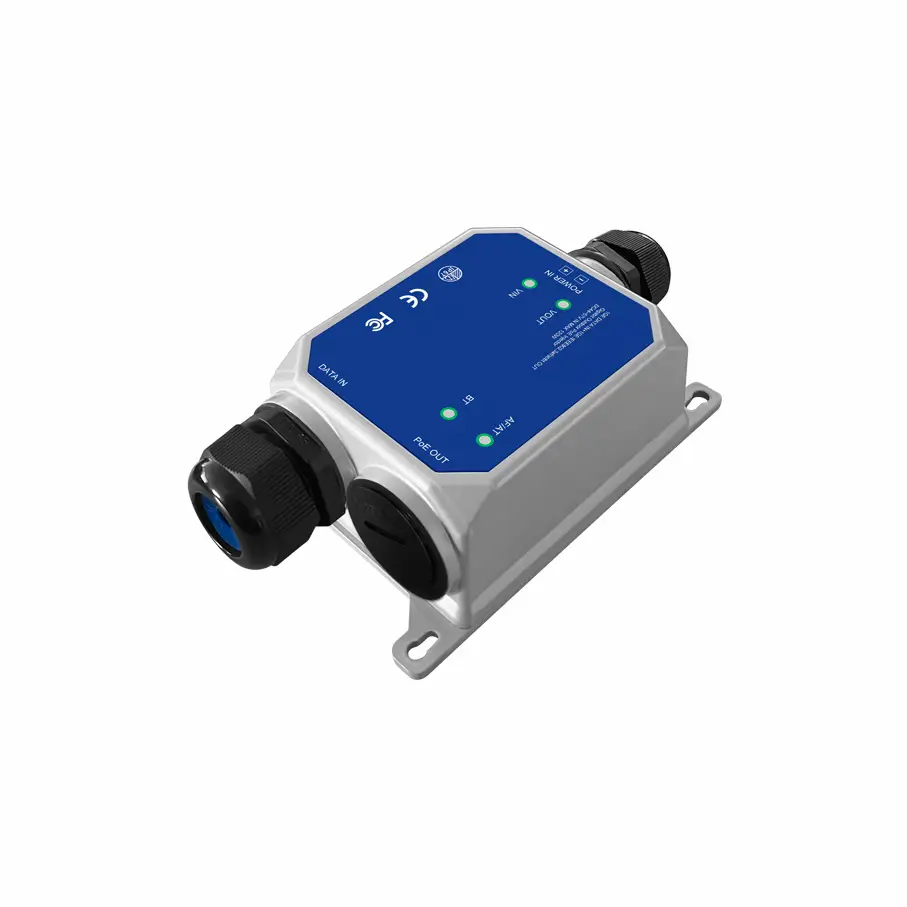

This Outdoor PoE Injector is designed to overcome the 100-meter distance limitation of standard Ethernet cables while simultaneously delivering robust Power over Ethernet (PoE) to remote devices. Featuring one Gigabit Ethernet (1GE) data input port and one Gigabit Ethernet PoE output port compliant with IEEE 802.3af/at/bt standards, it provides a simple, cost-effective solution for extending network connectivity and power to outdoor equipment such as IP cameras, wireless access points, and IoT sensors. Housed in a rugged, weatherproof enclosure, this extender enables flexible deployments in challenging outdoor environments without requiring local power sources at the remote device location. It operates transparently, requiring no configuration, making installation quick and straightforward.

Key Features:

Gigabit PoE Extension: Extends both network data (Gigabit Ethernet) and power (PoE) well beyond the standard 100-meter Ethernet limit over a single cable run to a remote device.

High-Power PoE Output (802.3bt): The output port supports the latest IEEE 802.3bt (PoE++) standard alongside 802.3af (PoE) and 802.3at (PoE+), delivering up to 90W of power to support high-power devices like PTZ cameras, high-gain radios, or multiple devices via a downstream switch.

Rugged Outdoor Design: Built with an IP-rated weatherproof and dustproof housing, typically rated IP67 or higher, ensuring reliable operation in harsh outdoor conditions including rain, snow, dust, and extreme temperatures.

Surge Protection: Incorporates advanced surge protection on both data lines and power lines (typically 6kV or higher) to safeguard connected equipment from damage caused by lightning strikes and power surges common in outdoor installations.

Zero Configuration & Passive Operation: Functions as a plug-and-play device requiring no software configuration or management. It draws power from the input PoE source (or optionally via a separate power adapter) and passes both data and enhanced power to the output device seamlessly.
