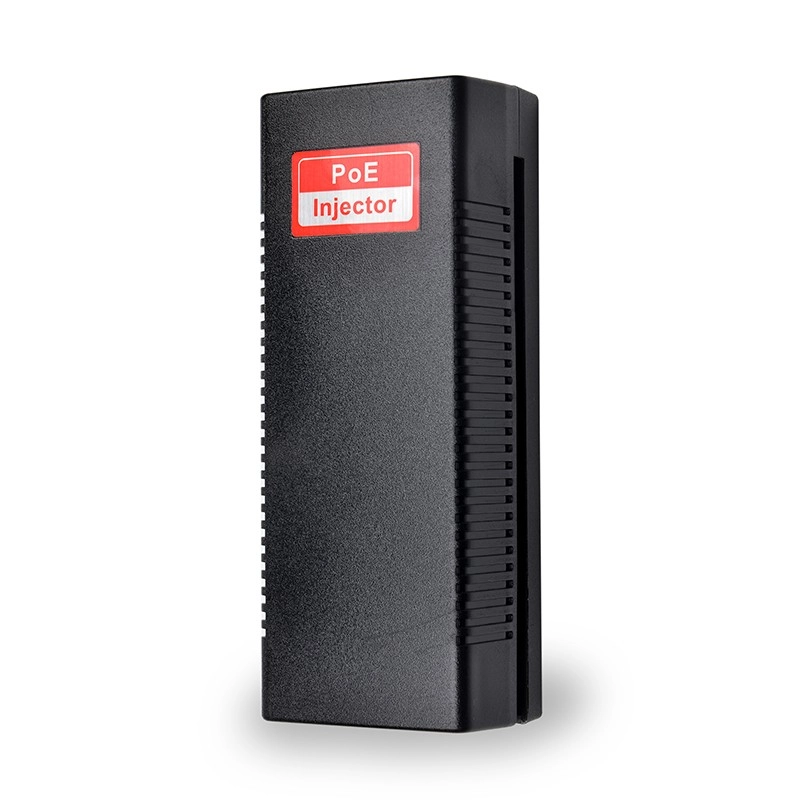

Gigabit 90W PoE Injector XPSE90G

PoE Injector

Gigabit 90W PoE Injector XPSE90G
Description
product-1-1

Professional Networking Solutions Manufacturer

PoE Network Switches, Industrial Ethernet Switches, Optical Transceivers, and Integrated Intelligent Systems.

Contact now

Products Description

Advanced PoE Solution


The XPSE90G is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The XPSE90G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.

By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore. For all the function featured in XPSE90G, people can get the benefit of flexible network installation at lower cost, less downtime.


Key Features
* Up to 90W of Power on3BT
* Safe on Low Power Devices Receive Only the Power They
 Need
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard Ethernet
 Terminals
* Supports 10/100/1000Base-T LAN
 environment

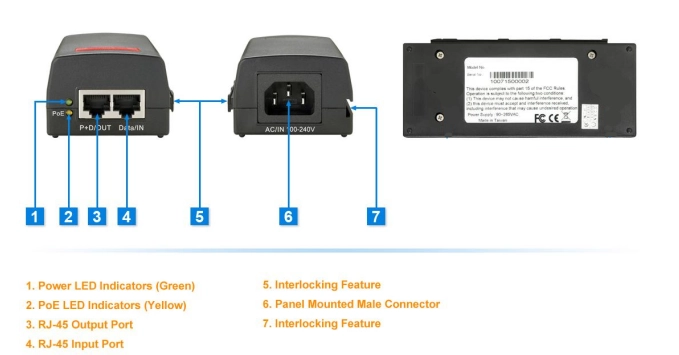

* Unique interlocking feature for easy
 installation


Technical Specifications Standards Compliance

Dimensions (L x W x H) / Weight 39*62.7*145mm

IEEE 802.3 10Base-T Ethernet

500g

IEEE 802.3u 100Base-Tx Fast Ethernet

Indicators

IEEE 802.3af/at/bt Power over Ethernet

AC Power (Green)

Connector: RJ-45 10/100/1000 Mbps

PoE (Orange)

PoE Power Output

Environmental Conditions

Pin Assignment and Polarity:

Operating Temperature: -20 ~55°C

Data+Power Pairs 1/2 (+), 3/6 (-);4/5 (+), 7/8 (-)

Storage Temperature: -25 ~ 70°C

Output Power Voltage: 54-56 VDC

Storage Humidity:

Power: Mode-A+Mode-B 90 Watts Max.

Maximum 95%, Non-condensing

Input Power AC Input Voltage: 100~240VAC


Requirements AC Input Current: ≤1.5A @ 100~240 VAC
