FEATURES

Fully supports lEEE802.3af/at

Single-port PoE power supply with an output power of up

to 30W.

Input Voltage Range 10-30VDC

Output Voltage Range 48-56VDC1500Vrms lsolation (Input-Qutput)plug-and-play, and requires no management.Support PoE applications in 100/1000/2500Mbps enviro

nments.

ModeA:1/2(+);3/6(-)

APPLICATION AREAS

Security and alarm systems

Voice over lP phonesAccess control systems

P Cameras

Displays, Net Monitors

Wireless access points

Description

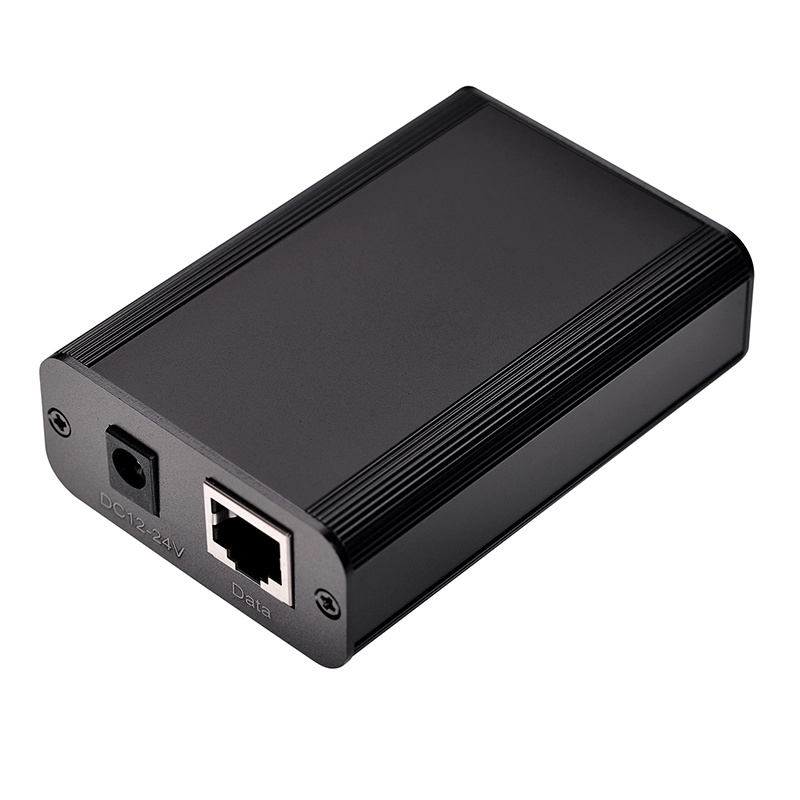

XPSE24-30TG is a single port PoE injector. lt provides 30W power for remote PDs over full 2-pairs output.ltsupports 100/1000/2500Mbps device. lt works for 30W PoE PDs, such as wireless APs, basestations,cameras, door locks, displays, POS, informa-tion kiosks and other Ethernet terminals. lt is alsocompatible and safe to use with any lEEE802.3af/at compliant terminals.XPSE24-30TG is designed for indoor use. lt works with input voltage of 10-30 Vdc. lt has detection chipinside, which will detect and classify PD before powering it. it will not apply power until a standardcompliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
