Model: X-OEX105F-BT

Type: PoE Extender PoE Repeater

RJ45 Port: 1 PoE in 4 PoE Out

PoE Standard: IEEE 802.3 af/at/bt 90w

PoE Port: 1 PoE in 4 PoE Out

Fiber Port: Non

Installation: wall mount

Support: OEM&ODM, Small MOQ

Overview

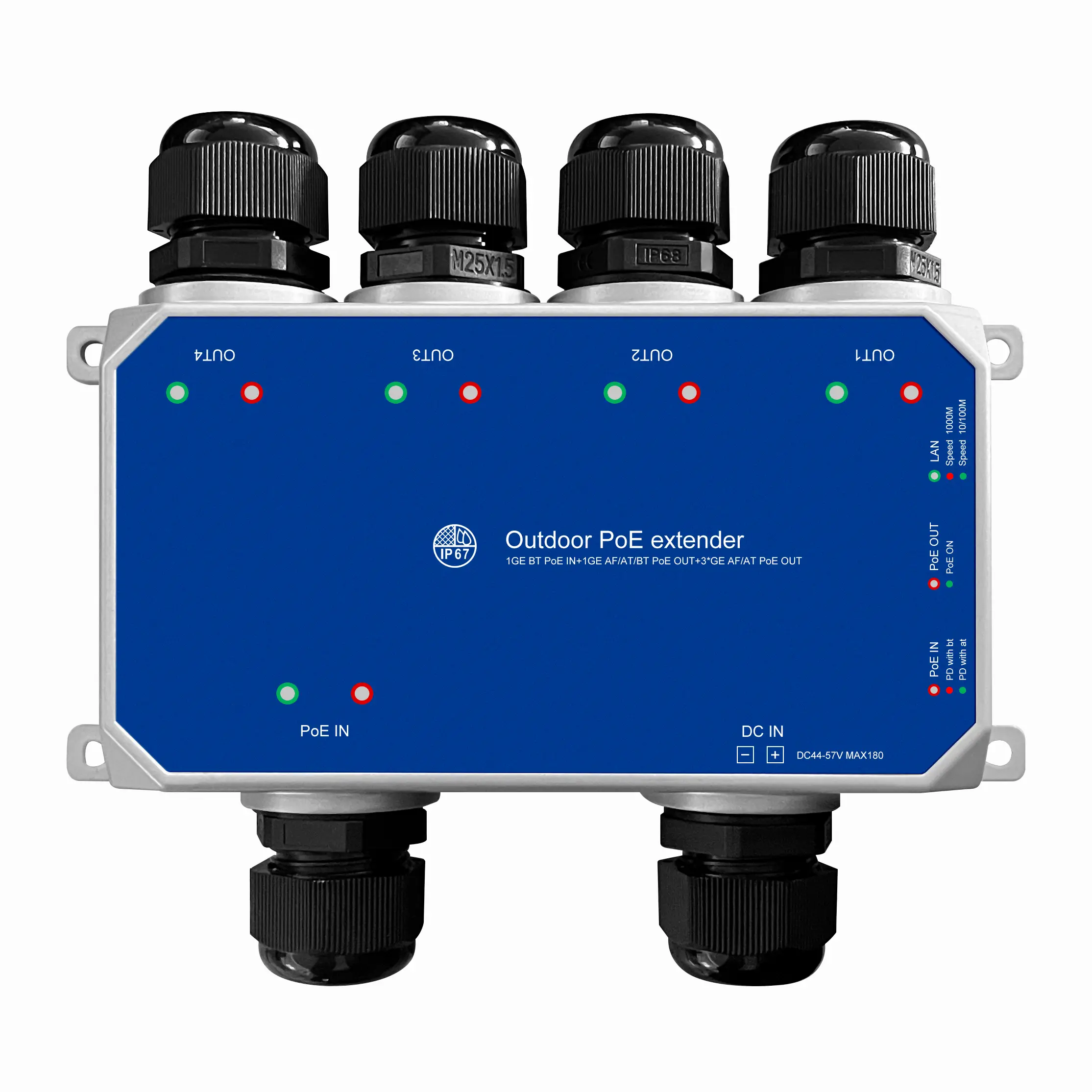

X-OEX105F-BT is a high-performance outdoor waterproof PoE (Power over Ethernet) extender designed to expand and distribute network connections efficiently. Featuring 1 input and 4 output ports, it supports up to 90W PoE power delivery, making it ideal for powering multiple IP cameras, wireless access points, or other PoE devices in remote locations. Built with a rugged, weatherproof housing (IP67 rated), it ensures reliable operation in harsh outdoor environments. With plug-and-play installation and robust surge protection, this extender delivers stable data transmission and power over long distances, simplifying deployments for surveillance and IoT applications.

5 Gigabit PoE Ports: Include 1 PoE In, 4 PoE Out, 10/100/1000Mbps speed.

IP67 Outdoor Weatherproof: Rugged industrial grade metal housing, cable interface are all protected in the shell, with waterproof cap, which has better waterproof, dustproof and snowproof effect, and is more suitable for outdoor and indoor environments, such as warehouses, computer rooms, garages, attics, etc.

IEEE 802.3 af/at/bt: All ports support this standard PoE, Input Max 120W IEEE802.3af/at/bt, Out1 Max 90W IEEE802.3af/at/bt, Out2-4 Max 30W IEEE802.3af/at. PoE Voltage 44-57 Vdc.

PoE pin: Input/Out1: 1/2 (+),4/5 (+), 3/6 (-),7/8 (-);Out2-4: 1/2 (+),3/6 (-)

Unmanaged Plug & Play: Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration. Support PoE Dog, auto reset fault device.

Easy Installation: No need for additional power adapter, powered by POE network. It also supports DC44-57V Max180W power input and provides a Phoenix terminal power connector. Meta case, support wall mount, small size, save space, suitable for more positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, increase POE coverage at low cost.
