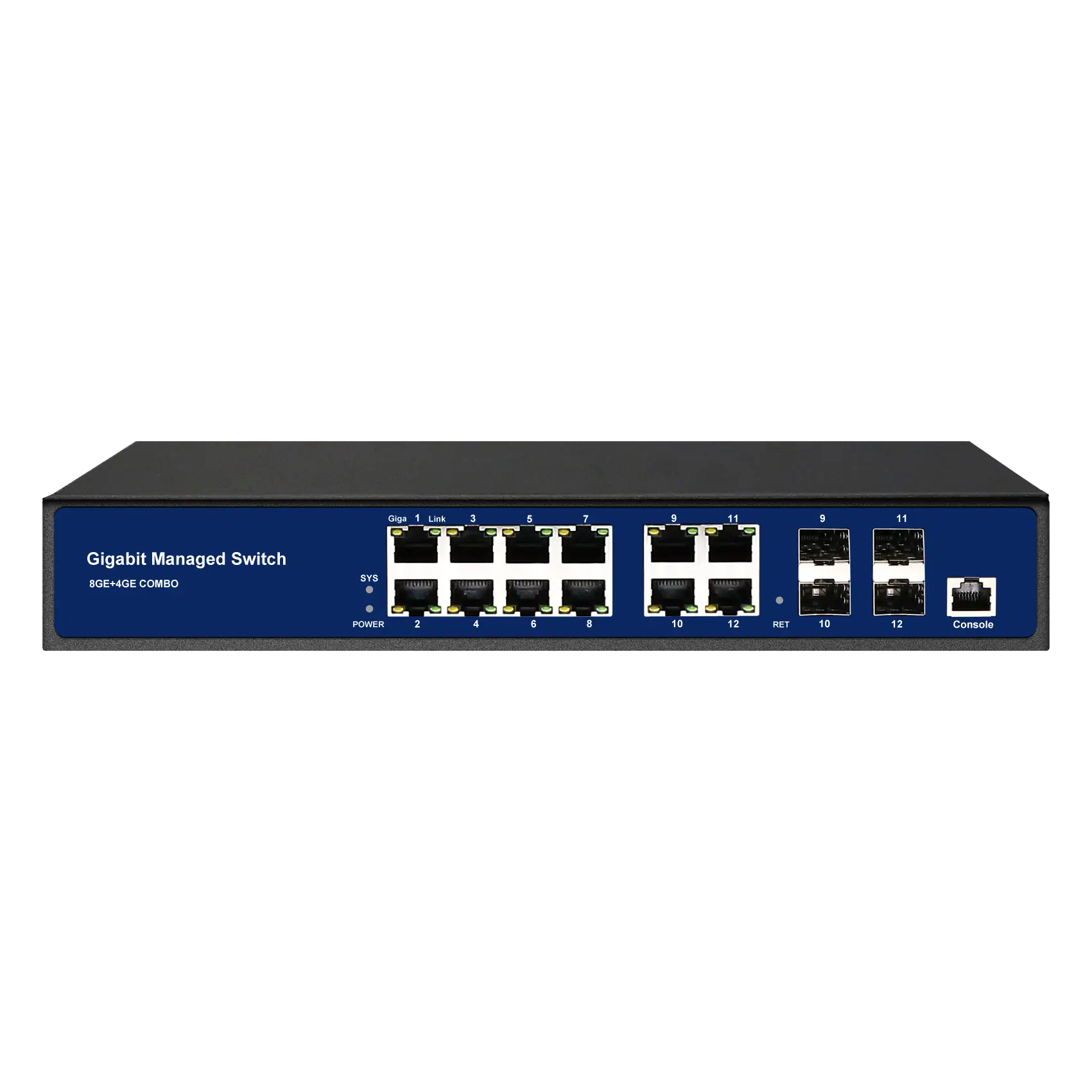

Model: X1550-8T4TS

Type: L2+ Managed Ethernet Switch

RJ45 Port: 8x10/100/1000M RJ45

Fiber Port: 4x1G SFP (Combo)

Installation: Desktop, Rack

Support: OEM,ODM based on small QTY

Overview

The X1550-8T4TS is a flexible Layer 2 managed switch designed for space-constrained deployments requiring versatile connectivity options and enterprise-grade control. Its hybrid port configuration makes it ideal for retail POS systems, industrial automation, small office networks, and distributed edge applications where adaptive media selection and robust management are essential.

This switch features 8 auto-negotiating 10/100/1000BASE-T RJ45 ports for copper device connectivity and 4 combo Gigabit ports (RJ45 + SFP slots shared per port), offering unique deployment flexibility. Each combo port allows selection between copper (RJ45) or fiber (SFP) connectivity, enabling tailored uplink solutions for EMI-sensitive environments, long-distance extensions (up to 80km with optics), or hybrid network integration without sacrificing port density.

Delivering comprehensive L2 management, the X1550-8T4TS supports VLANs, QoS (802.1p/DSCP), LACP/static link aggregation, and STP/RSTP/MSTP redundancy. Enhanced security includes 802.1X authentication, port isolation, ACLs, and DoS protection. The device operates silently via fanless design and offers multiple management interfaces (Web GUI, CLI, SNMPv3).

Key Features

1. Adaptive Combo Ports: 8x RJ45 Gigabit ports + 4x shared RJ45/SFP combo ports (copper/fiber choice per port).

2. Enterprise L2 Features: VLAN, QoS, LACP, STP/RSTP/MSTP, and IGMP snooping for multicast control.

3. Network Resilience: Link aggregation (LACP) and multi-spanning tree (MSTP) for redundant topologies.

4. Advanced Security: 802.1X port authentication, ACL filtering, broadcast storm control, and IP-MAC binding.

5. Silent Industrial Design: Fanless metal housing with wide operating temperature
