Model: X-400G-QSFP-DD-2x200G

Data Rate: 400G TO 200G

Wavelength: 850nm

Distance: 1~50m

Connector: QSFP-DD TO QSFP56

Fiber Type: MM

DDM: YES

Overview

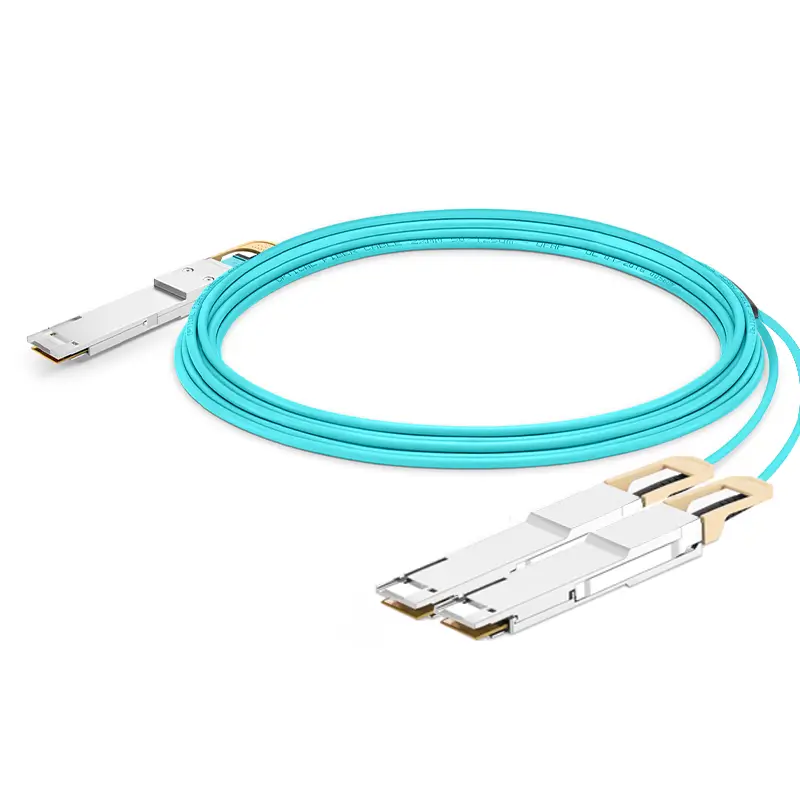

400G QSFP-DD to 2x200G QSFP56 Active Optical Cable (AOC) is a high-density, breakout solution designed for next-gen hyperscale data centers, AI/ML clusters, and high-performance computing (HPC) environments. This AOC splits a single 400G QSFP-DD port into two independent 200G QSFP56 channels, enabling flexible bandwidth allocation for 200G device connectivity while maintaining an aggregate throughput of 400Gbps. Leveraging advanced optical technology, it supports low-latency, error-free transmission over distances up to 100 meters on multimode fiber.

Built for scalability, the AOC features a compact QSFP-DD form factor with backward compatibility to QSFP56 and QSFP28 systems, ensuring seamless integration into hybrid network upgrades. Its plug-and-play design simplifies deployment, while lightweight construction reduces cable management complexity in high-density racks. Optimized for power efficiency and thermal performance, it minimizes energy consumption without compromising reliability.

Ideal for 400G/200G Ethernet, InfiniBand, and AI-driven workloads, this breakout AOC offers a future-proof, cost-effective solution to maximize port utilization, enhance network flexibility, and accelerate data-intensive applications in demanding environments.

Features

Eight-channel full duplex active optical

cable with breakout from QSFP-DD to 2xQSFP56

Up to 53.125 Gbps data rate per channel by PAM 4 modulation

Single 3.3 V power supply

Hot pluggable QSFP-DD and QSFP56 form factors

Commercial operating case temperature range:0 to 70°C

RoHS complian
