Model: X-SFP28-25G-BD

Data Rate: 25G

Wavelength: 1270/1330nm

Distance: 10KM

Connector: LC

Fiber Type: SM

DDM: YES

Overview

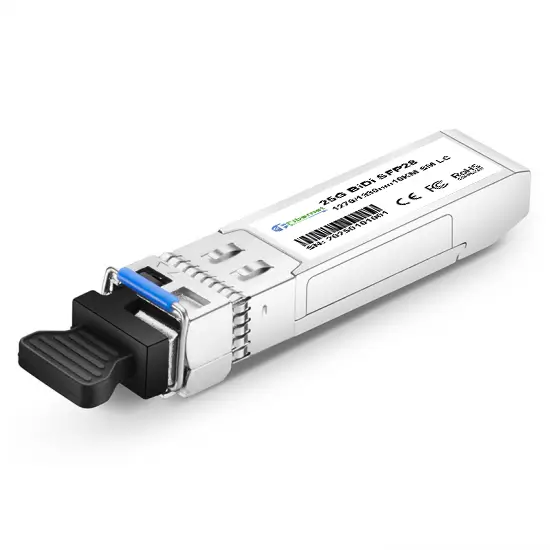

25G BiDi SFP28 TX1270/RX1330nm 10km LC Optical Transceiver is a bidirectional single-fiber module designed for high-efficiency, long-range data transmission. Compliant with IEEE 802.3cc and SFP28 MSA standards, it leverages wavelength division multiplexing (WDM) technology to transmit 25Gbps data at 1270nm and receive at 1330nm over a single strand of single-mode fiber (SMF), achieving distances up to 10 kilometers. This BiDi design reduces fiber infrastructure costs by halving fiber count compared to dual-fiber solutions.

Ideal for data center interconnects, enterprise networks, and telecom backbones, the transceiver supports 25G Ethernet and 32G Fibre Channel applications. Its compact SFP28 form factor and hot-swappable design enable seamless integration into high-density switches, routers, and servers. Integrated digital diagnostics monitoring (DDM) offers real-time tracking of temperature, voltage, and optical performance, ensuring network reliability and simplified maintenance.

With low power consumption, backward compatibility with 10G infrastructure, and future-proof scalability, the 25G BiDi SFP28 transceiver delivers a cost-effective, space-saving solution for high-speed, long-haul optical connectivity in bandwidth-demanding environments.

Features

Supports up to 25.78Gbps bit rates

Hot-pluggable SFP+ footprint

1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Operating case temperature:Standard: 0 to +70°C
