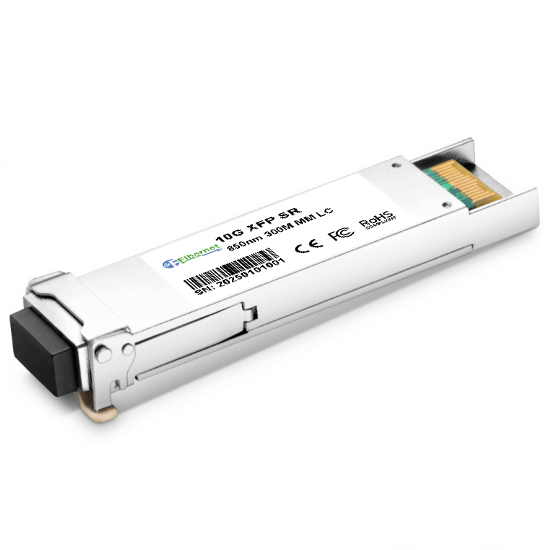

Model: X-XFP-10G-MM-SR

Data Rate: 10G

Wavelength: 850nm

Distance: 300M

Connector:

Fiber Type: LC

DDM: YES

Overview

10G XFP SR 850nm optical transceiver is a high-speed, hot-swappable module optimized for short-range 10 Gigabit Ethernet (10GbE) and fiber channel applications. Operating at a wavelength of 850nm over multi-mode fiber (MMF), it supports data transmission distances up to 300 meters, making it ideal for intra-data-center connections, server-to-switch links, and enterprise LAN environments. Compliant with IEEE 802.3ae 10GBASE-SR and XFP MSA standards, this transceiver ensures seamless compatibility with a wide range of networking equipment.

Featuring an LC duplex interface, it combines low power consumption with high signal integrity, while integrated Digital Diagnostics Monitoring (DDM/DOM) provides real-time performance insights. The compact XFP form factor enables flexible deployment in high-density setups. Designed for commercial temperature ranges, this module delivers stable performance in typical operating conditions. Cost-effective and durable, it offers plug-and-play simplicity for quick network upgrades, making it a reliable choice for high-speed, short-reach 10G applications.

Features

Supports 9.95Gbps to 11.1Gbps bit rates

Maximum link length of 300m (50um,MMF,2000MHz.Km)

850nm VCSEL laser and PIN receiver

XFP MSA Rev 4.5 Compliant

No reference clock required  +1.8V,+3.3V Supply Voltage

Low Power Dissipation 1.5W Maximum

XFI and lineside loopback Mode Supported

0ºC to 70ºC Operating Case Temperature

Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power

RoHS6 compliant (lead free)
