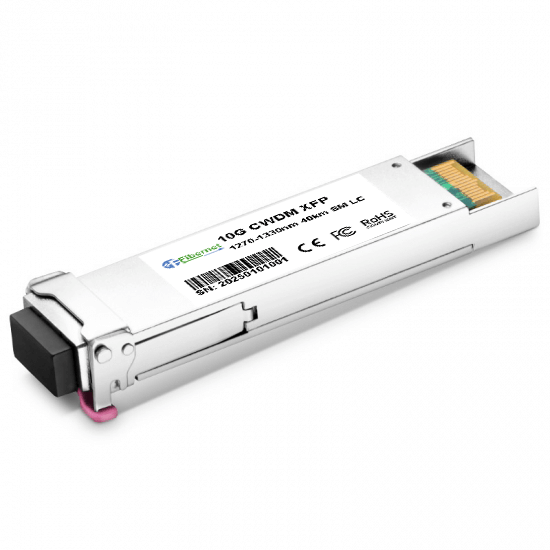

Model: X-10G-CWDM-XFP

Data Rate: 10G

Wavelength: 1270-1330nm

Distance: 40KM

Connector: LC

Fiber Type: SM

DDM: YES

Overview

10G CWDM XFP 40KM optical transceiver is a versatile, hot-swappable module designed for high-capacity 10 Gigabit Ethernet (10GbE) and metro/regional network applications. Utilizing Coarse Wavelength Division Multiplexing (CWDM) technology, it operates across multiple wavelengths (1270–1610nm) over single-mode fiber (SMF), enabling efficient fiber resource utilization and extended transmission distances up to 40 kilometers. Ideal for telecom backbones, data center interconnects, and enterprise networks, it supports flexible wavelength allocation to optimize network scalability.

Compliant with XFP MSA and IEEE 802.3ae standards, this transceiver ensures compatibility with mainstream networking equipment. Featuring an LC duplex interface, it delivers high signal integrity, low power consumption, and integrated Digital Diagnostics Monitoring (DDM/DOM) for real-time performance tracking. The compact XFP form factor suits high-density deployments, while its industrial temperature range (-40°C to 85°C) guarantees reliability in harsh environments. Offering cost-effective, plug-and-play operation, this module is a robust solution for expanding bandwidth and extending reach in CWDM-based 10G networks.

Features

Wavelength selectable to ITU-T standards covering CWDM grid wavelengths

XFP MSA Rev 4.5 Compliant

Data rate from 9.95Gbps to 11.3Gbps

No Reference Clock required

Cooled EML and PIN receiver

link length up to 40km

Low Power Dissipation 3.5W Maximum

XFI and line side loopback Mode Supported

-5ºC to 70ºC Operating Case Temperature

Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power

RoHS6 compliant (lead free)
