Model: X1580P-5GT2X

Type: L3 Managed PoE Ethernet Switch

RJ45 Port: 5*10/100/1000M/2.5G RJ45 port

PoE Standard: IEEE802.3af/at/bt

PoE Port: 1 port Max 90W; 2-4 ports Max 30W/port

Fiber Port: 2*10G SFP+

Installation: Desktop (with optional wall or rack mounting accessories)

Support: OEM&ODM, Small MOQ

Overview

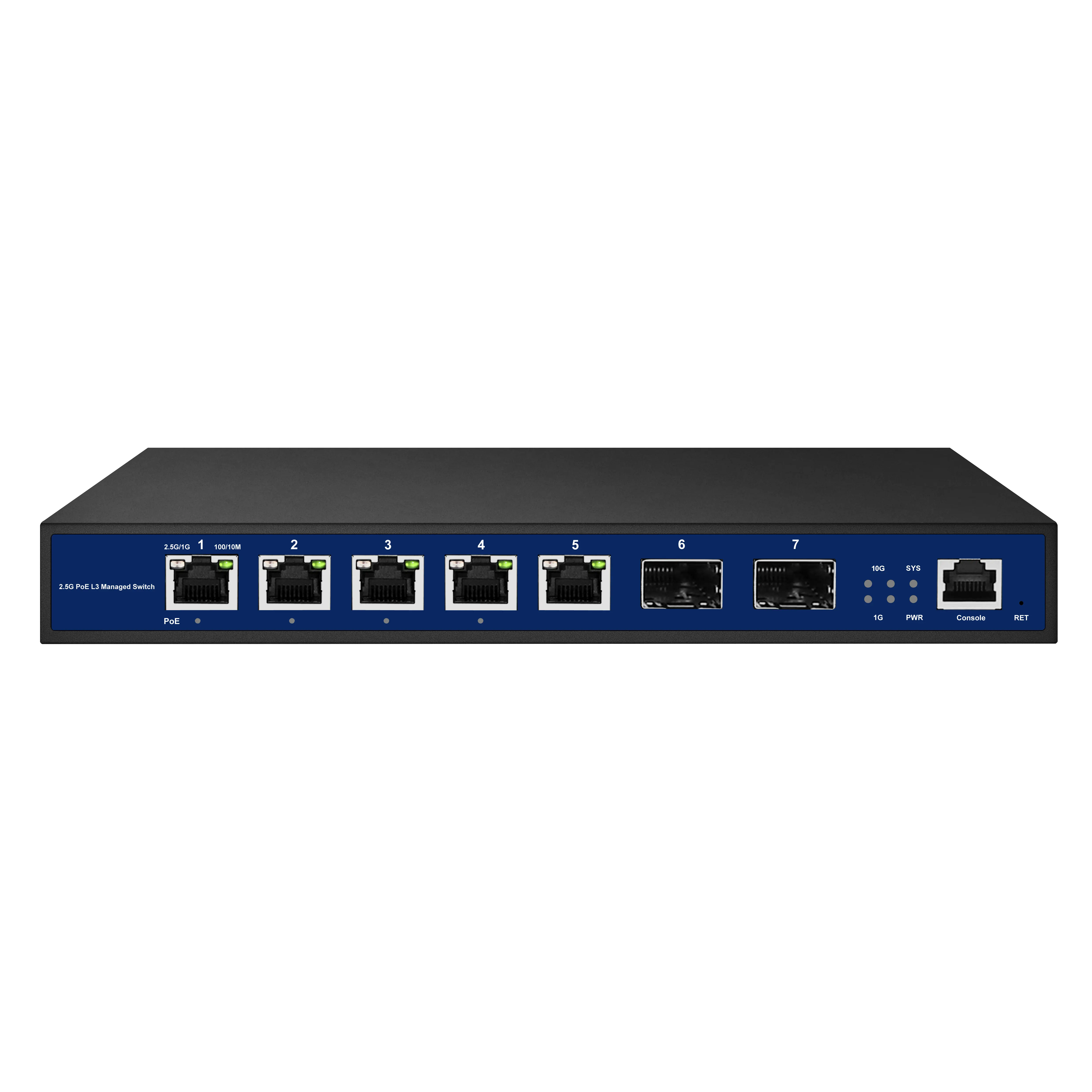

X1580P-5GT2X is a Layer 3 managed PoE+ switch, combining high-speed connectivity with advanced network control. It features five 2.5G PoE+ Ethernet ports (IEEE 802.3af/at, 30W per port) and two 10G SFP+ fiber uplinks, delivering robust performance for enterprise Wi-Fi 6/6E, 4K surveillance, and bandwidth-intensive applications.

With L3 routing protocols, VLAN, QoS, and advanced security features, it enables precise traffic management in demanding environments. The fanless rugged metal design ensures silent operation and reliability, while PoE power scheduling and monitoring optimize energy efficiency. Ideal for medium-sized businesses, campuses, and smart buildings needing scalable, high-performance 2.5G/10G PoE networking with enterprise-grade control.
