Model: X1520-8XT4X

Type: 10G Ethernet Switch with Smart Web

RJ45 Port: 8x10G RJ45 ports

PoE Standard: non

PoE Port: non

Fiber Port: 4x10G SGP+ ports

Installation: desktop/wall mount

Support: OEM&ODM, Small MOQ

Overview

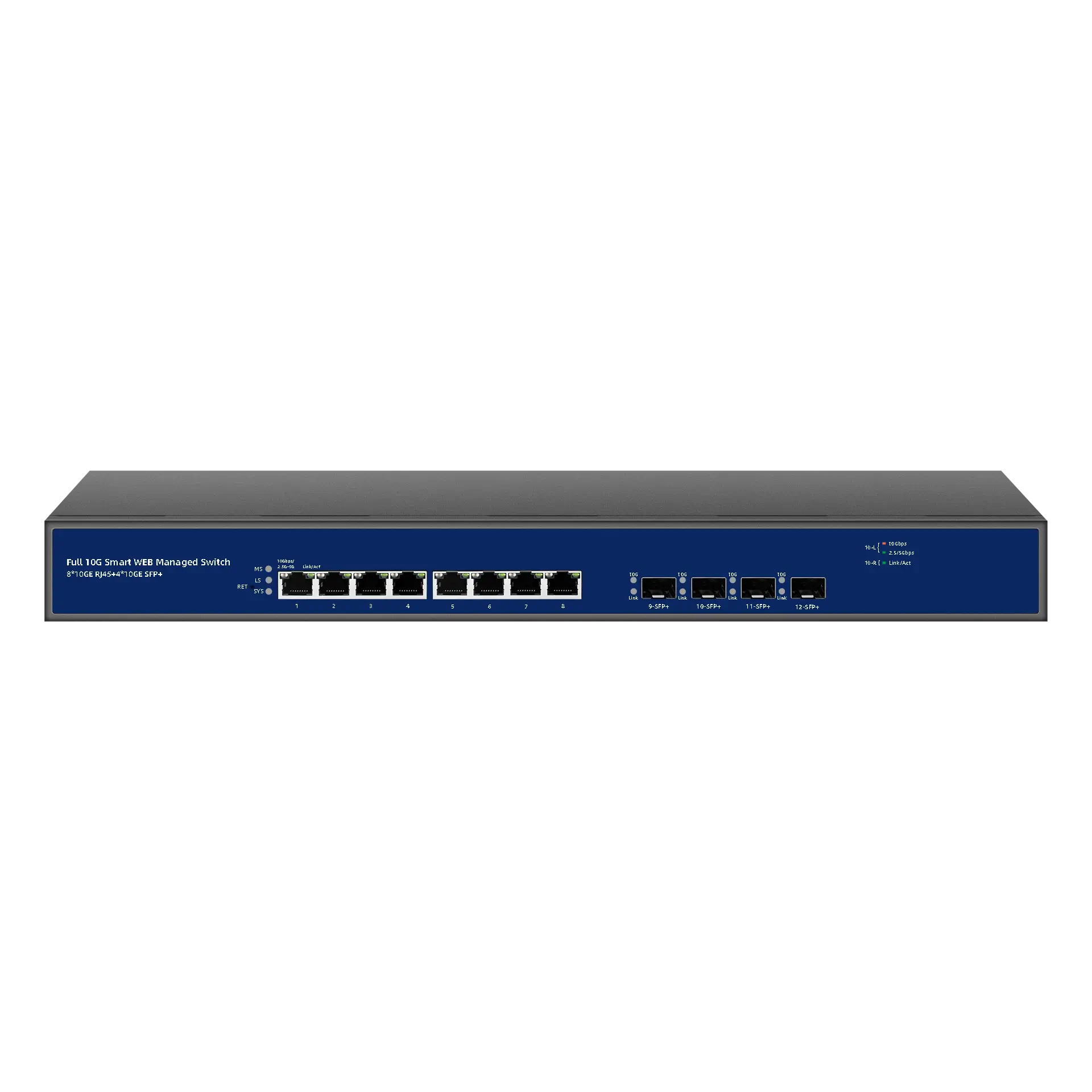

The X1520-8XT4X is a high-performance 12-port Smart Web-managed 10G Ethernet switch designed for modern hybrid network environments. Featuring 8×10G RJ45 copper ports and 4×10G SFP+ fiber ports, it delivers exceptional connectivity flexibility for enterprise networks, data centers, and multimedia applications. This optimal port combination enables seamless integration of copper-based devices with high-speed fiber backbones, supporting diverse infrastructure requirements.

Powered by a 240Gbps non-blocking switching fabric, the switch guarantees wire-speed performance with ultra-low latency (<2μs), making it ideal for bandwidth-intensive applications like virtualization, 4K/8K video streaming, and large-scale data transfers. The intelligent thermal design offers fanless operation for quiet environments or optional fan cooling for high-density deployments, while advanced energy-saving technology optimizes power efficiency without compromising performance.

The user-friendly Smart Web interface provides comprehensive Layer 2+ management capabilities including VLAN, QoS, LACP, and real-time traffic monitoring. With its perfect balance of copper and fiber ports, enterprise-grade performance, and intuitive management, the X1520-8XT4X is an excellent solution for organizations seeking to future-proof their network infrastructure.

Key Features

1. Hybrid Connectivity: 8×10G RJ45 + 4×10G SFP+ ports for flexible deployment

2. High-Performance Switching: 240Gbps non-blocking architecture

3. Intelligent Thermal Design: Fanless or fan-cooled operation options

4. Smart Web Management: Easy configuration via browser-based GUI

5. Energy Efficient: Advanced power-saving technology with low consumption
