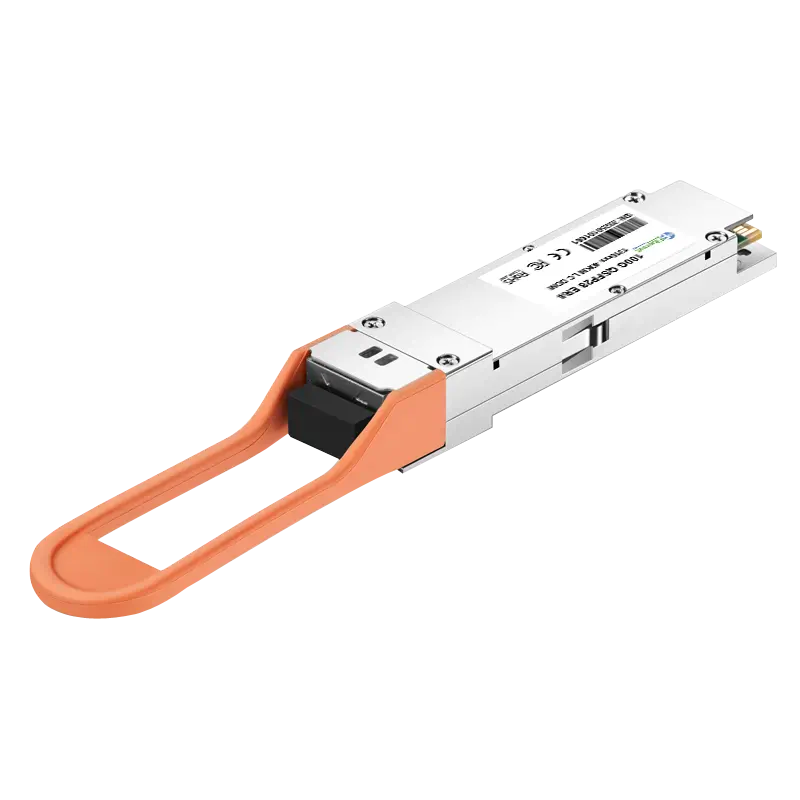

Model: X-100G-QSFP28-ER4

Data Rate: 100G

Wavelength: 1295.56, 1300.05, 1304.58, 1309.14nm

Distance: 40KM

Connector: LC

Fiber Type: SM

DDM: YES

Overview

100G QSFP28 ER4 LC Optical Transceiver is a high-power, long-reach solution engineered for 100 Gigabit Ethernet (100GbE) and OTU4 applications, enabling transmission distances of up to 40 kilometers over single-mode fiber (SMF). Compliant with IEEE 802.3bs, QSFP28 MSA, and ITU-T G.959.1 standards, this transceiver delivers data rates up to 103.1 Gbps using four 25Gbps LAN-WDM lanes. These channels are multiplexed via a duplex LC connector, operating at wavelengths centered on 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm.

Designed for metro networks, telecom backhaul, and long-haul data center interconnects, it features advanced dispersion compensation and high sensitivity to ensure reliable performance over extended distances. With a typical power consumption of <4W and integrated Digital Diagnostic Monitoring (DDM), it enables real-time health tracking and optimized network management. The module supports a low bit-error rate (BER <1E-12) and operates across industrial temperature ranges (-40°C to 85°C), ensuring stability in harsh environments. Its compact QSFP28 form factor and LC interface ensure seamless compatibility with high-density switches and existing fiber infrastructure, making it a versatile choice for scalable, future-proof networks.

Features

Compliant with 100GBASE-ZR4

Support line rates from 103.125 Gb/s to 111.81 Gb/s OTU4

LAN WDM EML laser and PIN receiver with SOA

Up to 80km reach for G.652 SMF

Transmission wavelength: 1294 nm- >1311 nm

Hot pluggable 38 pin electrical interface

QSFP28 MSA compliant

Duplex LC optical receptacle

RoHS-10 compliant and lead-free

Single +3.3V power supply

Maximum power consumption 6.5W

Warranty period: 2 Years

Case operating temperature Commercial: 0 ~ +70℃
